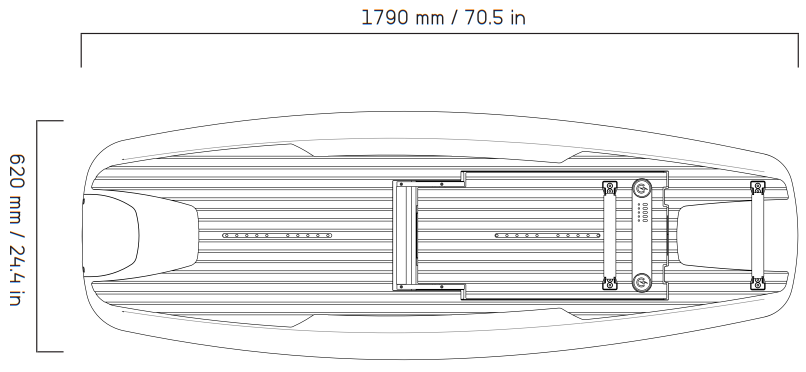

1. Awake RÄVIK ONE

Motor:

Awake - 11 kW Brushless DC

Cooling:

Passive water cooling

Hull:

Carbon/Innegra composite foam core

sandwich monocoque

Passenger Capacity:

One (1) operator

Max Rider Weight:

110 kg / 242 lbs

Absolute Max Weight:

136 kg / 300 lbs

Weight (SR):

38 kg / 84 lbs

Weight (XR):

43 kg / 95 lbs

Category:

D*

* – EU DIRECTIVE 94/25/EC – The definition of Boat Design
Category D: “D. Sheltered waters — Designed for voyages on
sheltered coastal waters, small bays, small lakes, rivers and
canals when conditions up to, and including, wind force 4 and
significant wave heights up to, and including, 0,3 m may be
experienced, with occasional waves of 0,5 m maximum height, for
example from passing vessels.”

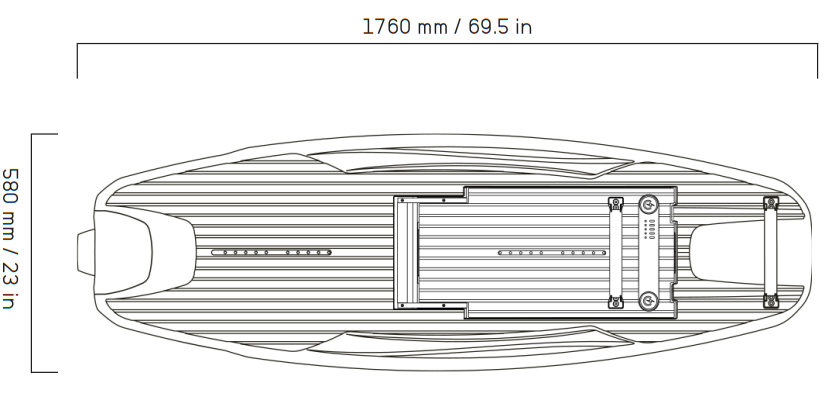

2. Awake RÄVIK S

Motor:

Awake - 11kW Brushless DC

Cooling:

Passive water cooling

Hull:

Carbon/Innegra composite foam core
sandwich monocoque

Passenger Capacity:

One (1) operator

Max Rider Weight:

110 kg/ 242 lbs

Absolute Max Weight:

136 kg / 300 lbs

Weight:

39 kg/ 86 lbs

Weight:

44 kg/ 97 lbs

Category:

D*



* – EU DIRECTIVE 94/25/EC – The definition of Boat Design
Category D: “D. Sheltered waters — Designed for voyages on
sheltered coastal waters, small bays, small lakes, rivers and
canals when conditions up to, and including, wind force 4 and
significant wave heights up to, and including, 0,3 m may be
experienced, with occasional waves of 0,5 m maximum height, for
example from passing vessels.”

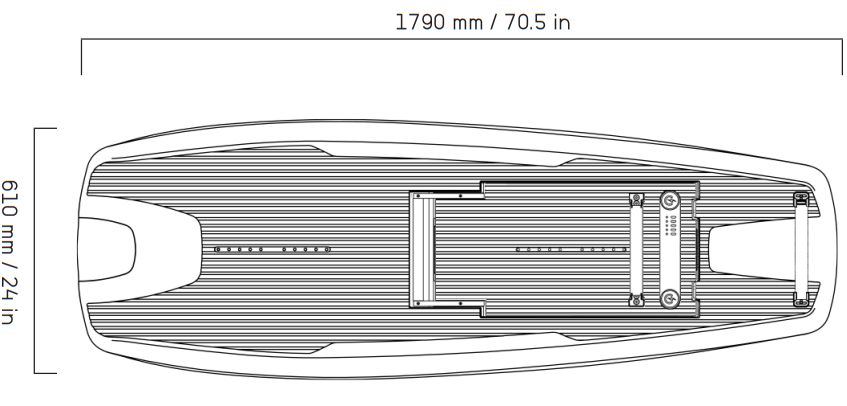

3. Awake RÄVIK 3

Motor:

Awake - 11 kW Brushless DC

Cooling:

Passive water cooling

Hull:

Carbon/Innegra composit foam core
sandwich monocoque

Passenger Capacity:

One (1) operator

Max Rider Weight:

110 kg/ 242 lbs

Absolute Max Weight:

136 kg / 300 lbs

Weight (SR):

40 kg/ 88 lbs

Weight (XR):

45 kg/ 99 lbs

Category:

D*

* – EU DIRECTIVE 94/25/EC – The definition of Boat Design
Category D: “D. Sheltered waters — Designed for voyages on
sheltered coastal waters, small bays, small lakes, rivers and
canals when conditions up to, and including, wind force 4 and
significant wave heights up to, and including, 0,3 m may be
experienced, with occasional waves of 0,5 m maximum height, for
example from passing vessels.”
