VINGA

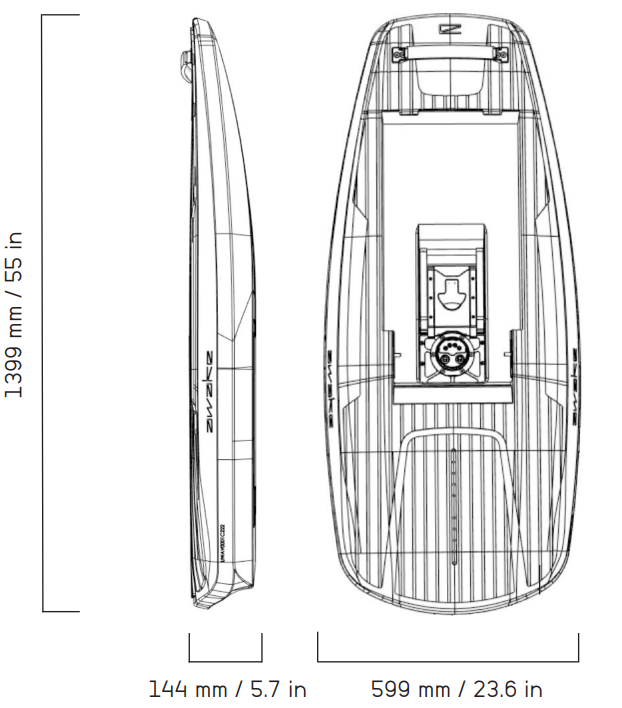

1. Awake VINGA Board

Hull:

Carbon/Innegra
composite foam core
sandwich monocoque

Passenger Capacity:

One (1) operator

Max Rider Weight:

110 kg / 242 lbs

Absolute Max Weight:

136 kg / 300 lbs

Volume:

60 L

Weight:

7.8 kg / 15 lbs

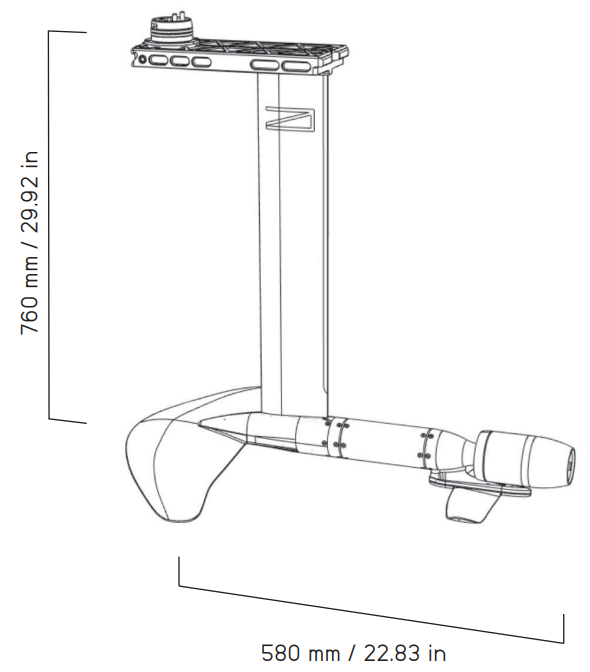

2. Awake VINGA Drive Unit

Mast:

Anodized Aluminium

Motor:

Awake-Motor 8.16 kW Brushless DC

Connector Module:

Awake-CM

Cooling:

Passive water cooling

Weight:

11 kg / 24 lbs

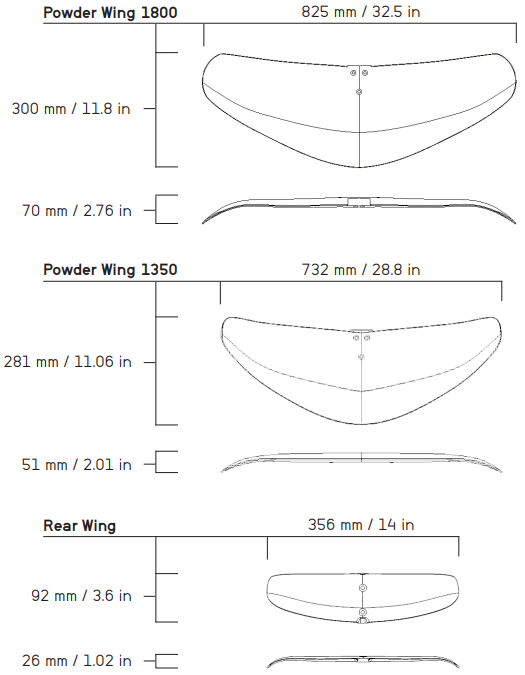

3. Awake VINGA Wings

Material:

Carbon Fiber

Weight:

1.5 kg / 2.2 lbs
