1. VINGA Inventory
2. Install the wings
3. Charge the battery
4. Click-To-Ride setup
5. Connect the battery
6. State of charge
7. Download the Awake Link app
8. Pair the controller
9. Video tutorial

Vinga Inventory

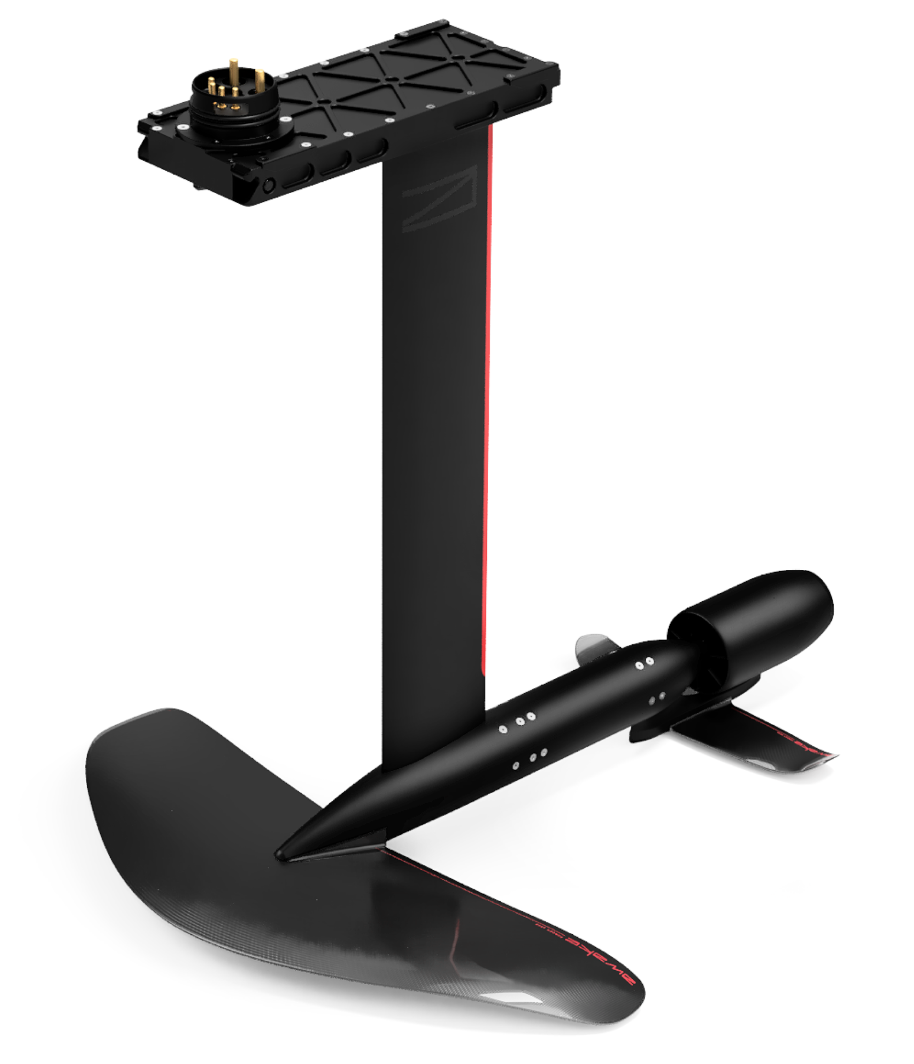

Board VINGA 3 / S		Drive Unit Mast with CM, Motor and Jet		Battery Standard range (SR) / Extended range (XR) with charger

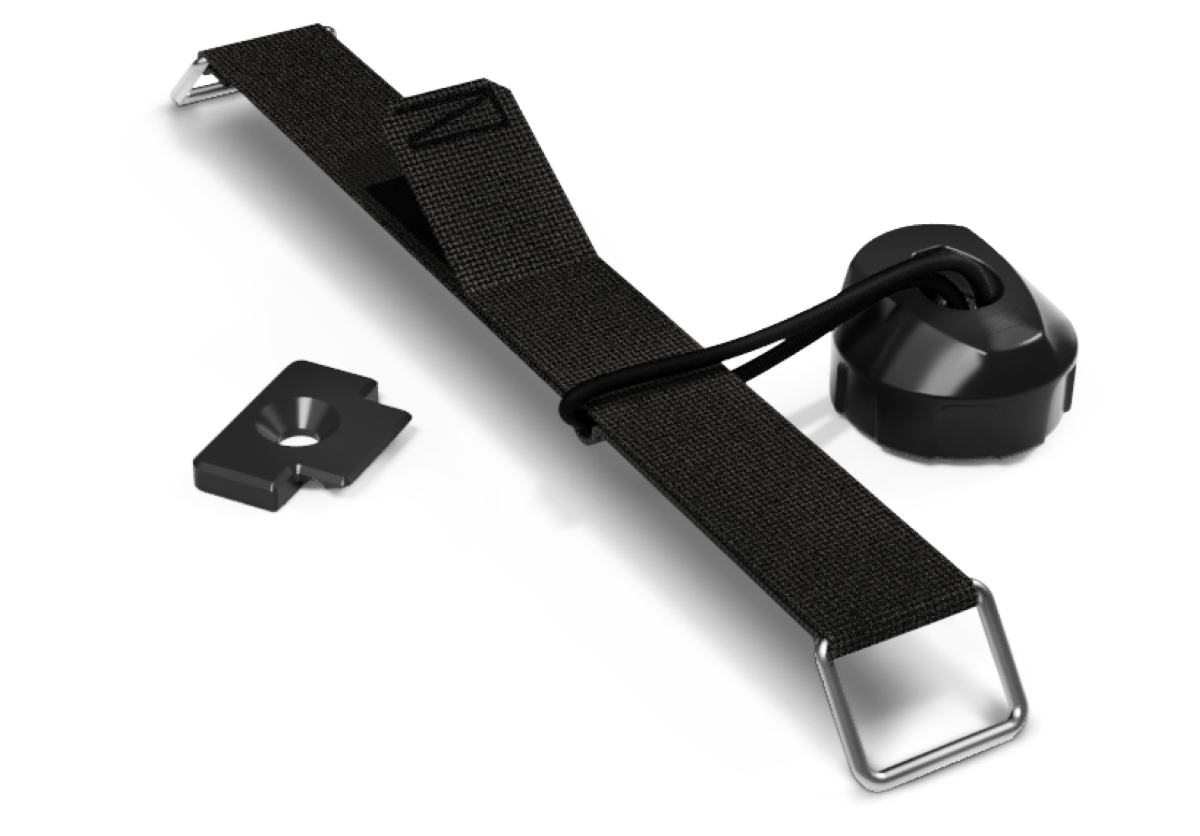

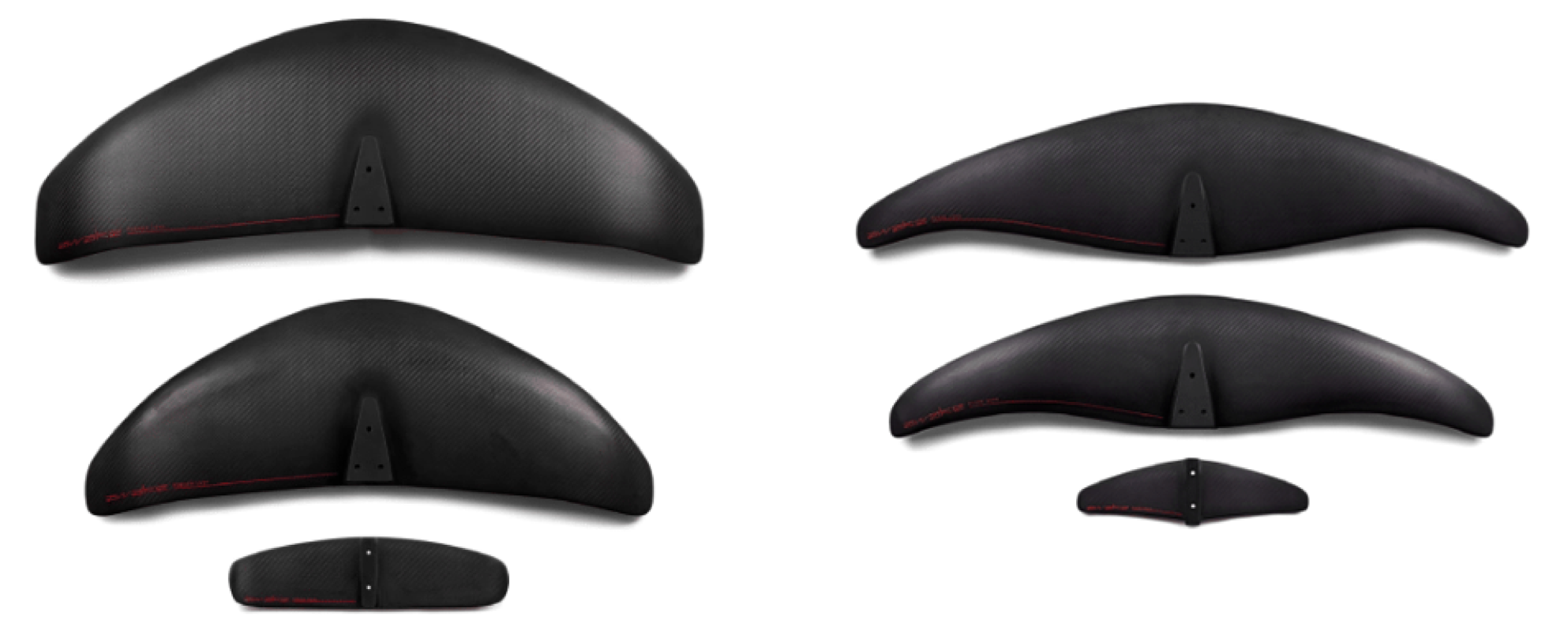

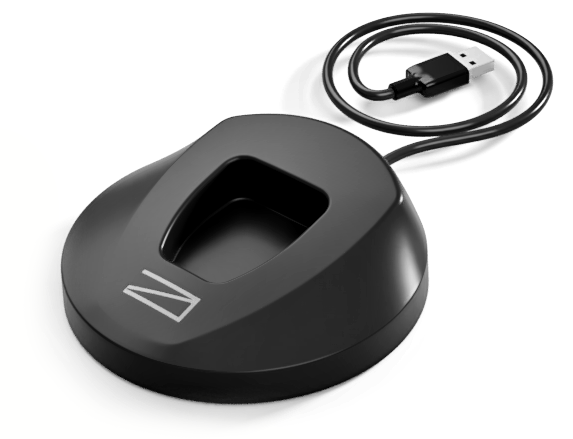

Controller Wireless controller with charger		Power Key Competition Power key to activate the battery		Wings Powder wings: 1800/1400 Fluid wings: 1300/1000 Rear wings: Powder/Fluid



Install the wings

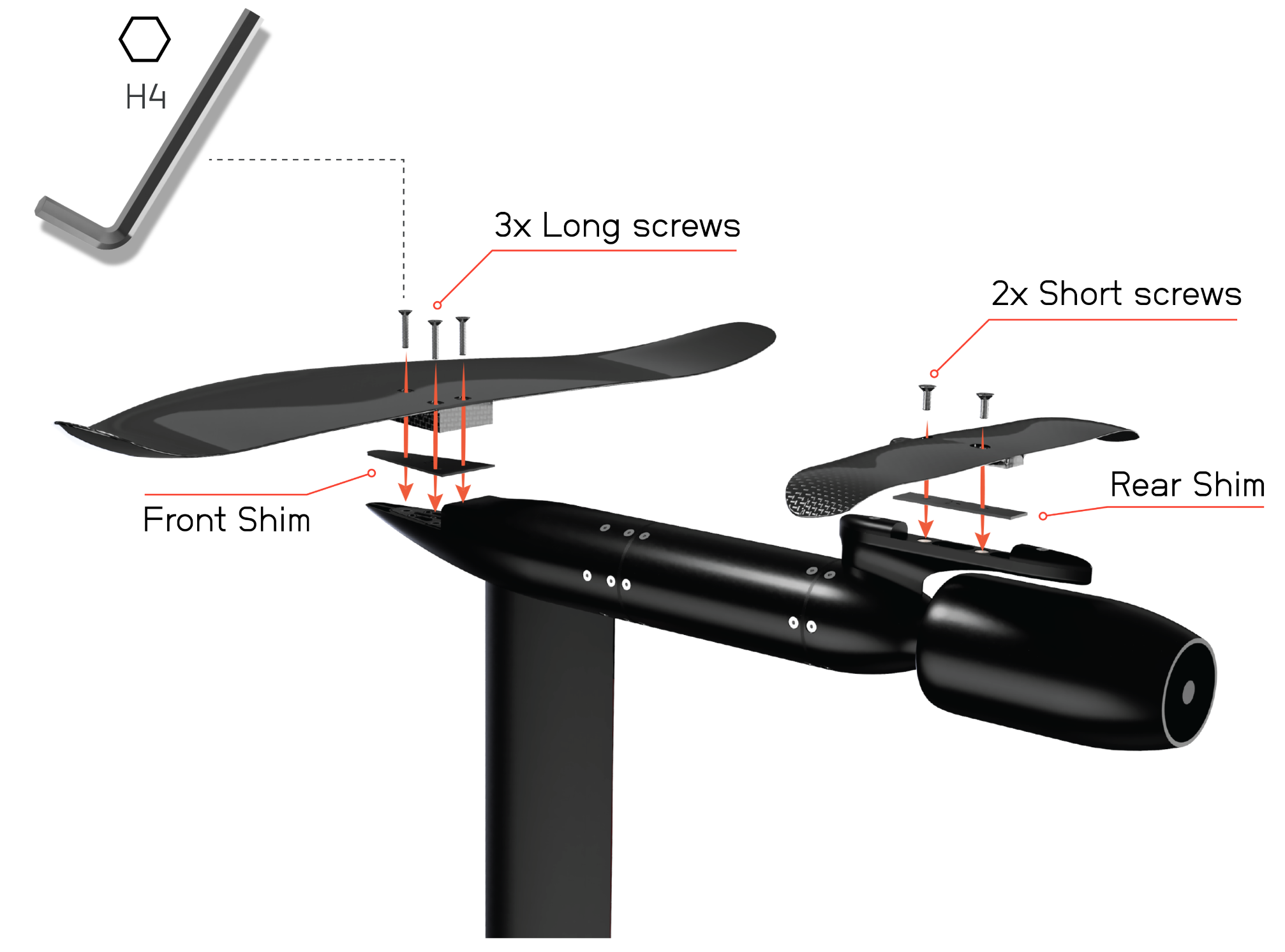

1. Fasten the screws with the complimentary Allen key.

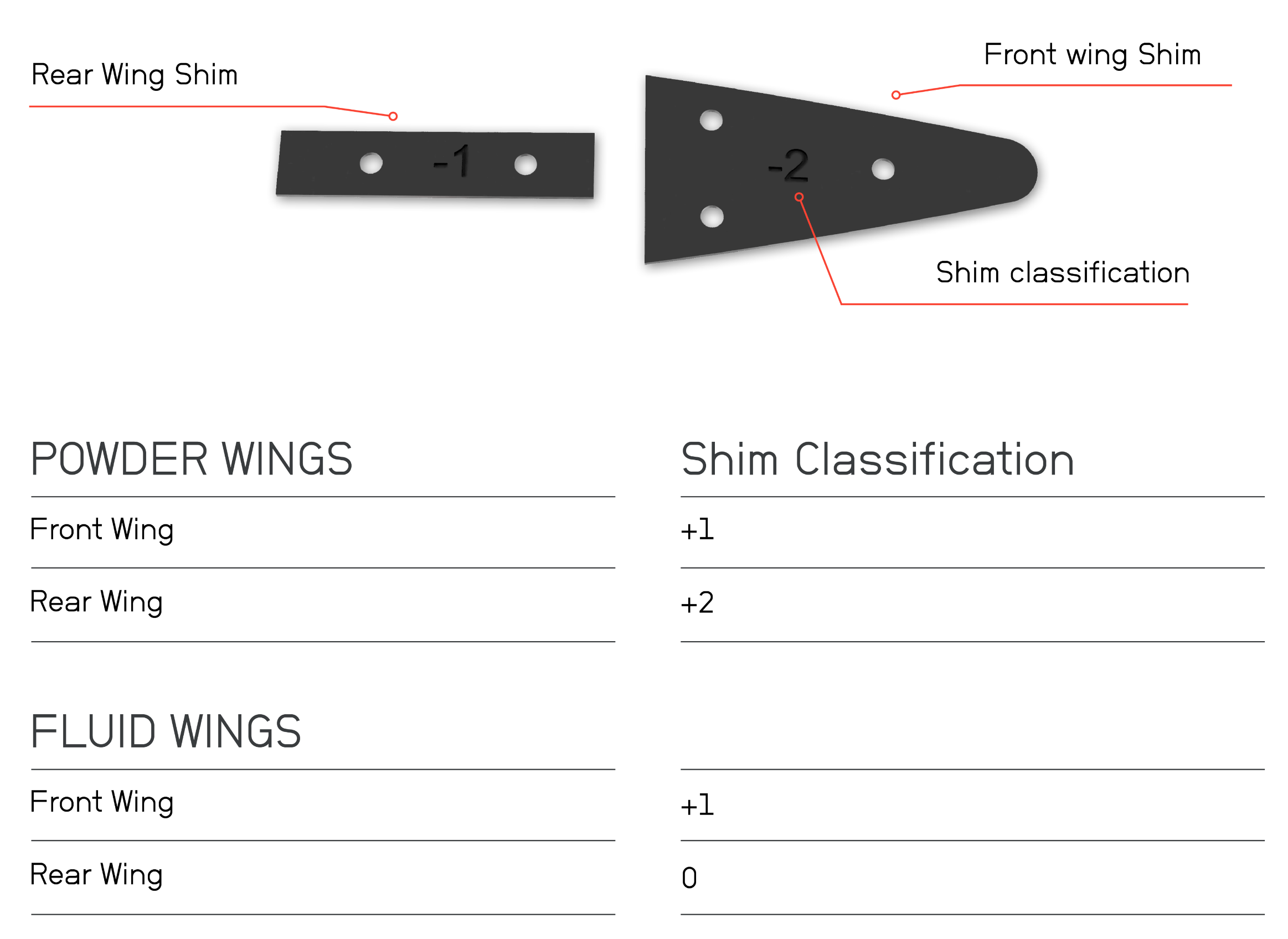

2. When receiving your Powder or Fluid wings set, you will find Shims for both front and rear wings.
See the Awake team recommendations below:





Charge the battery

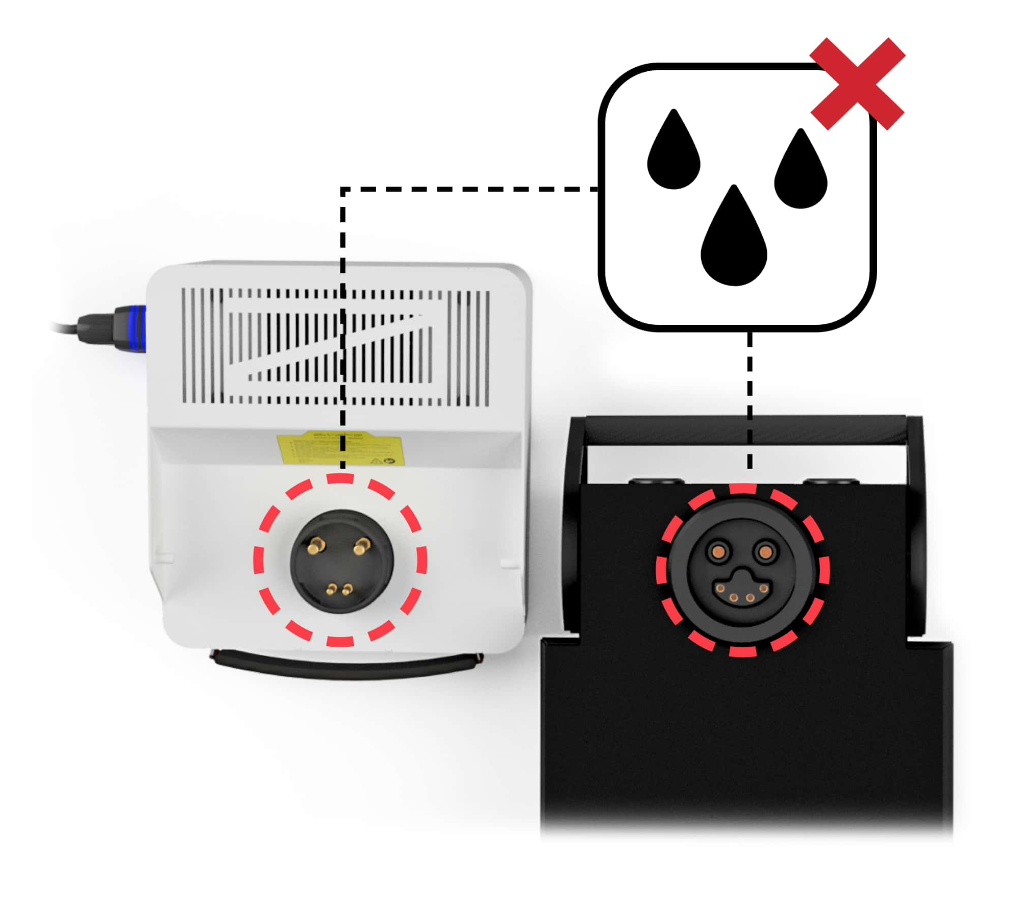

1. Make sure that all connection points are dry and free from debris.

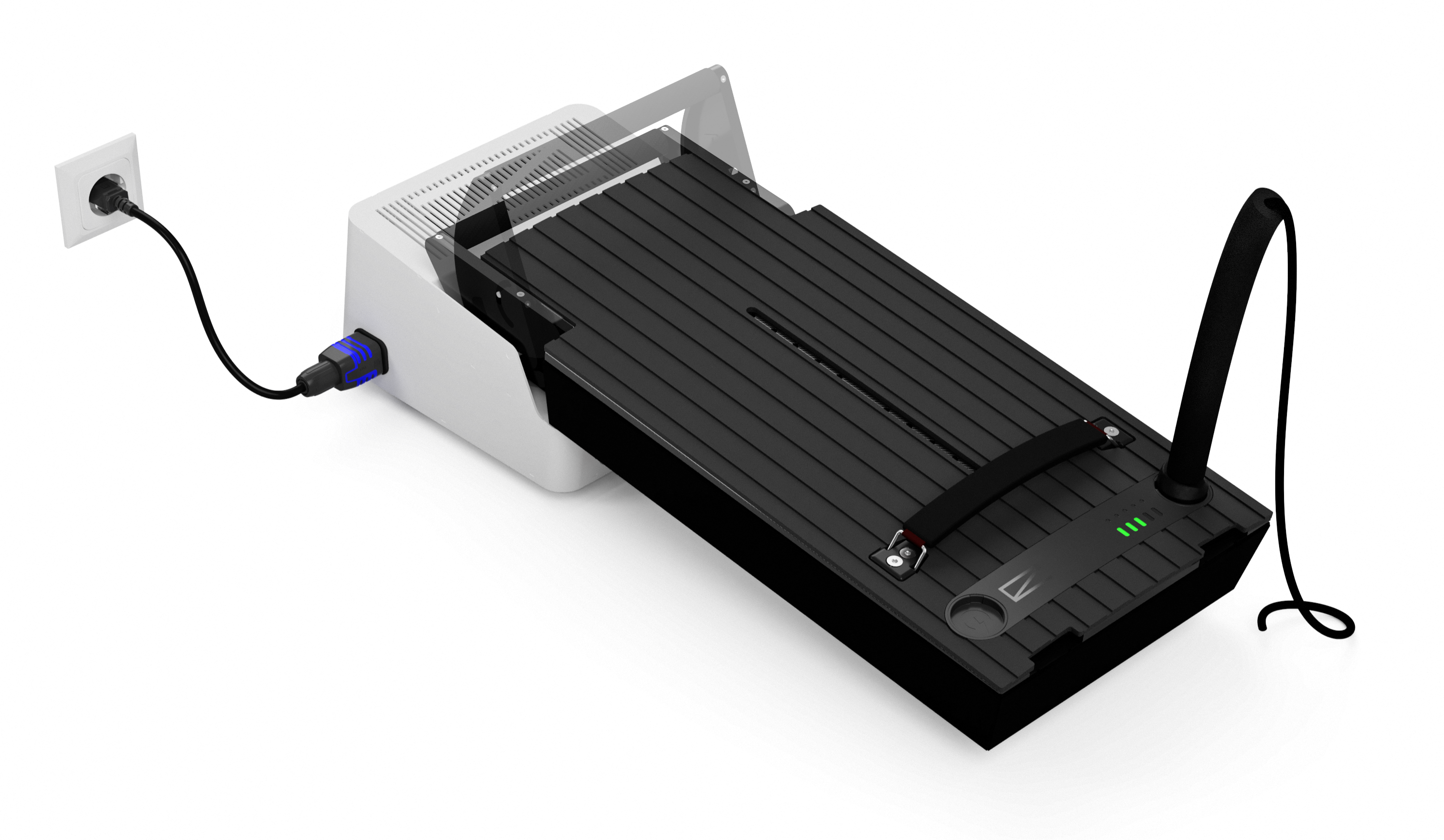

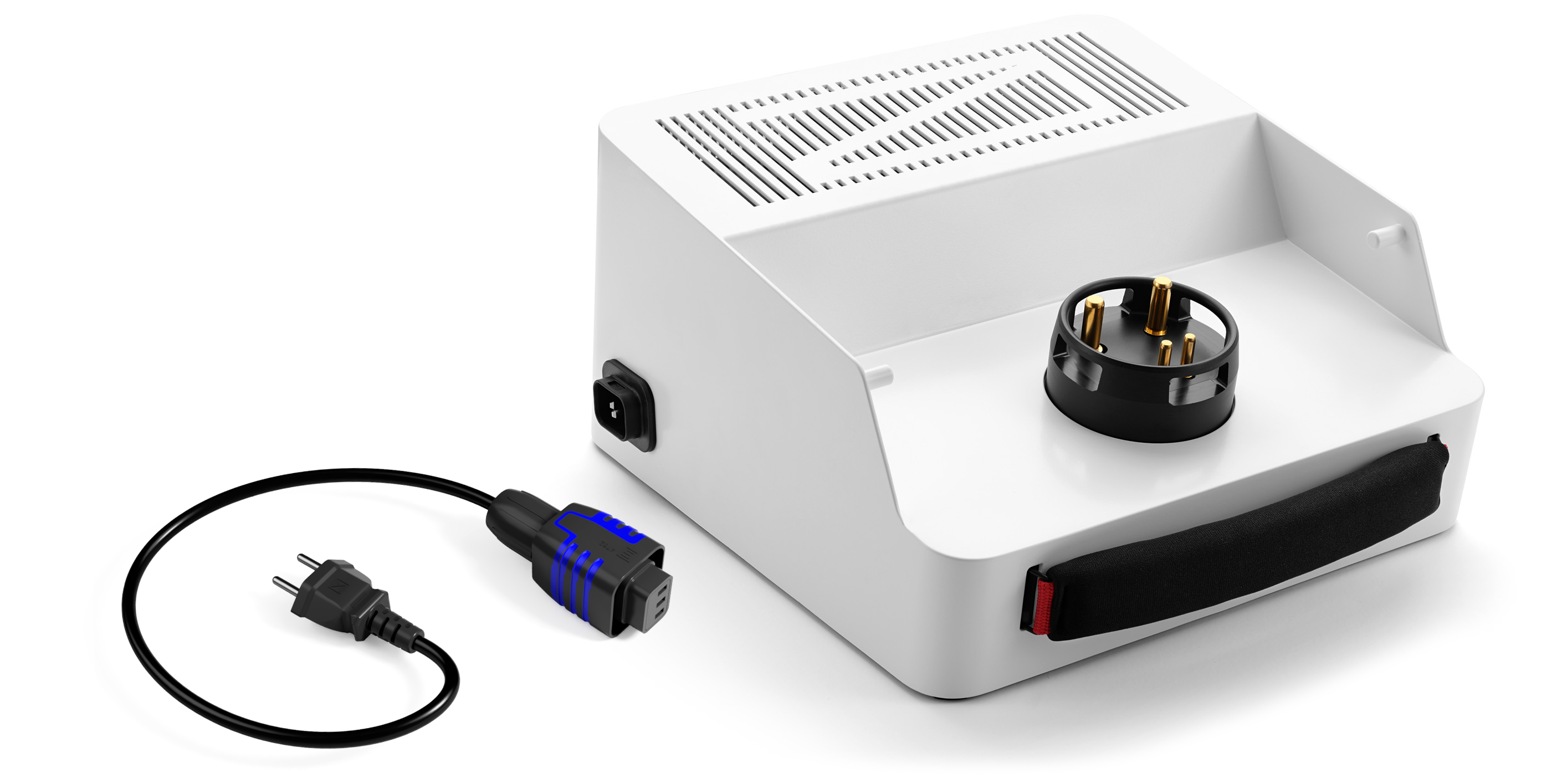

2. Connect the charger to a power outlet, place the BP on the charger, lock it and activate it with the Power Key.

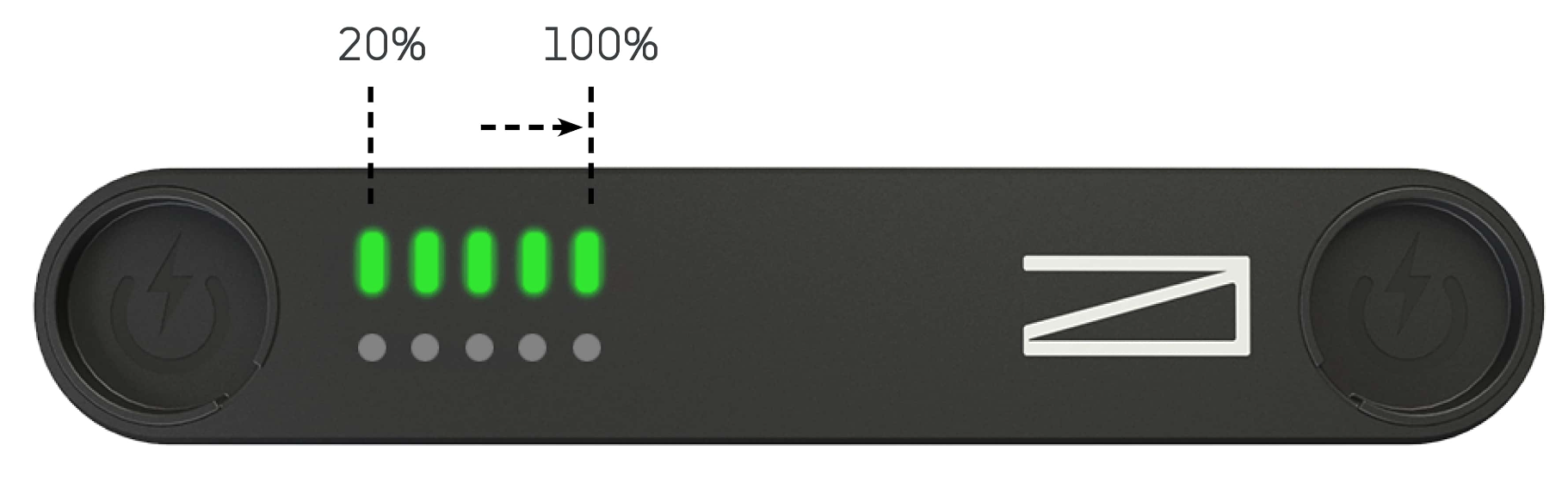

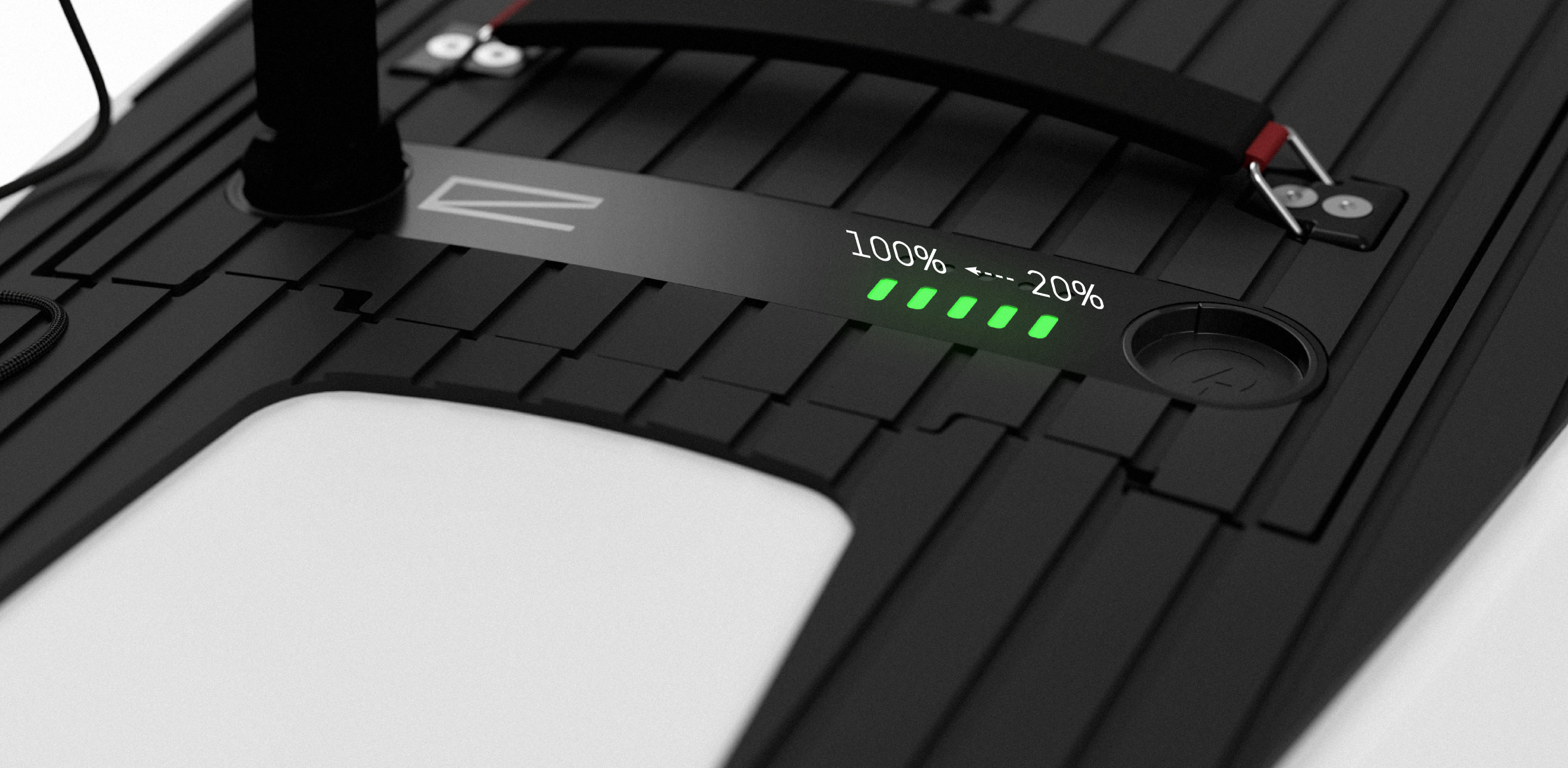

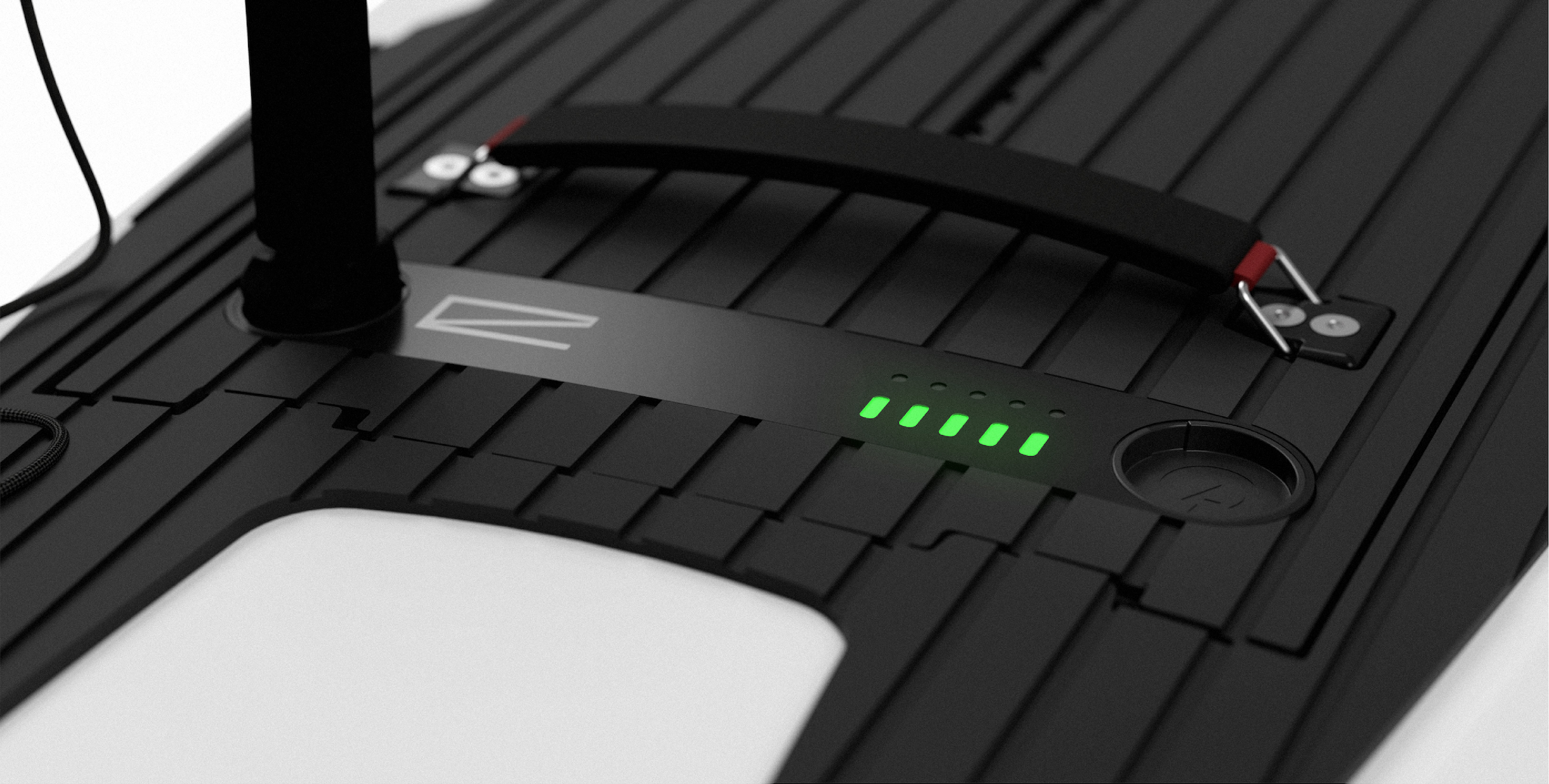

3. Monitor the charge level on the LED panel. Each light rep- resents 20% and 5 solid green lights indicate full charge





Click-to-Ride setup

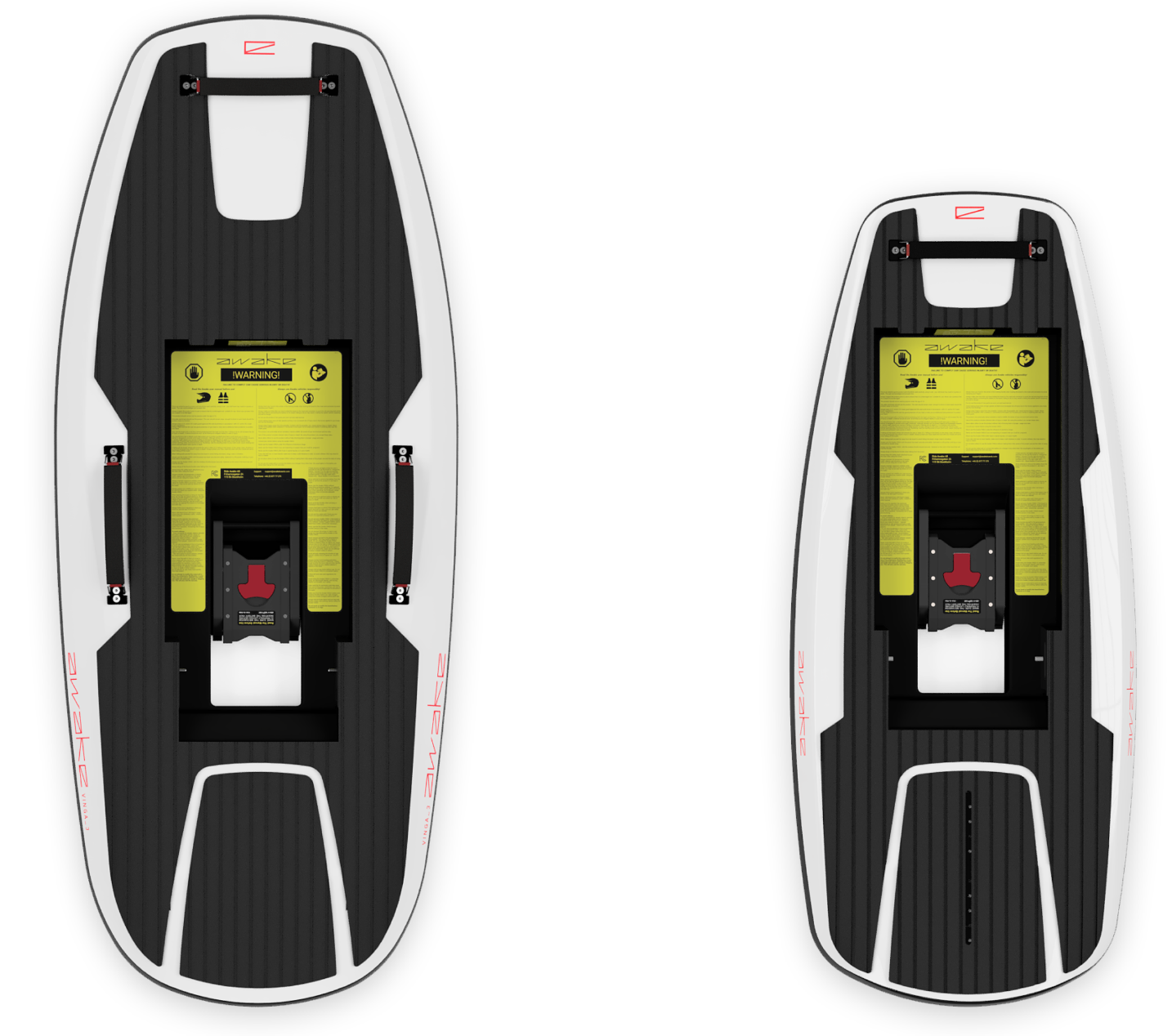

1. Grab the board, orient it so that the nose of the board is pointing in the direction of the powder wing.

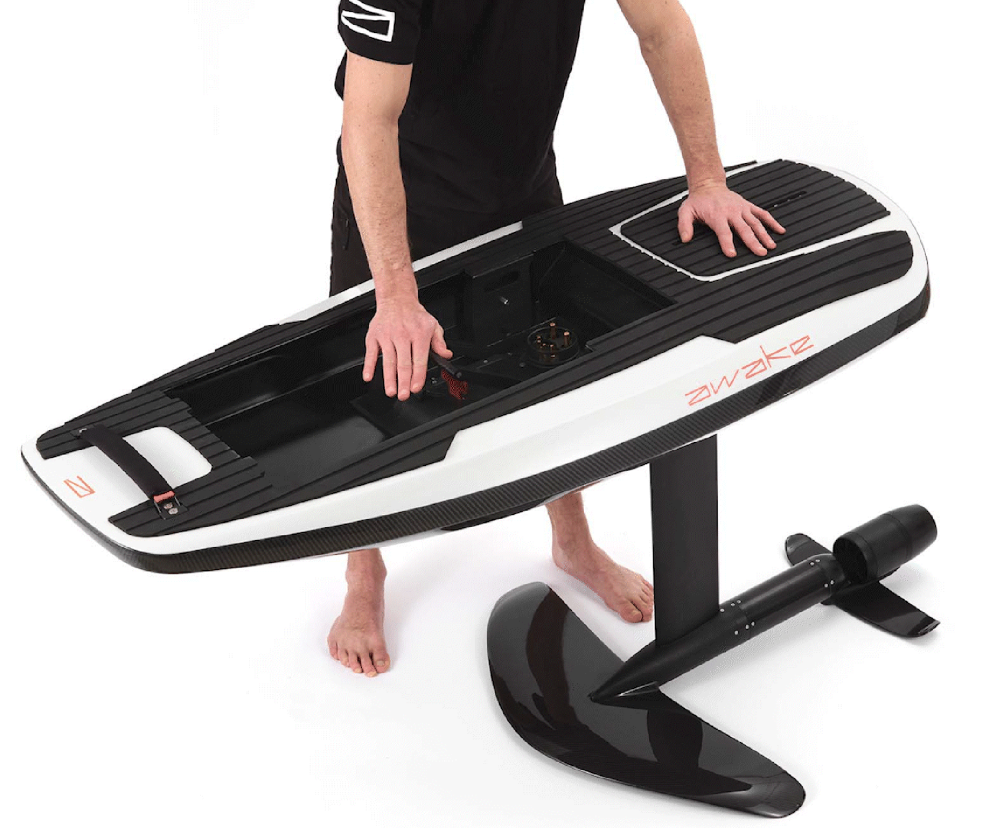

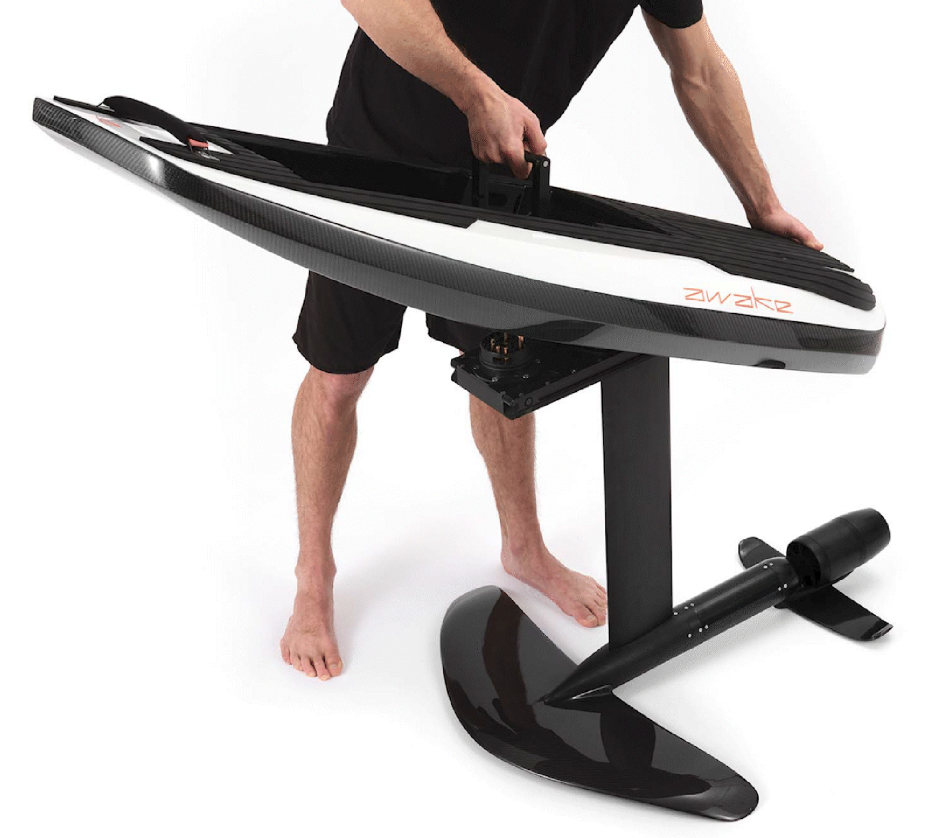

2. Place the board on top of the drive unit, starting with the back end of the connector module.

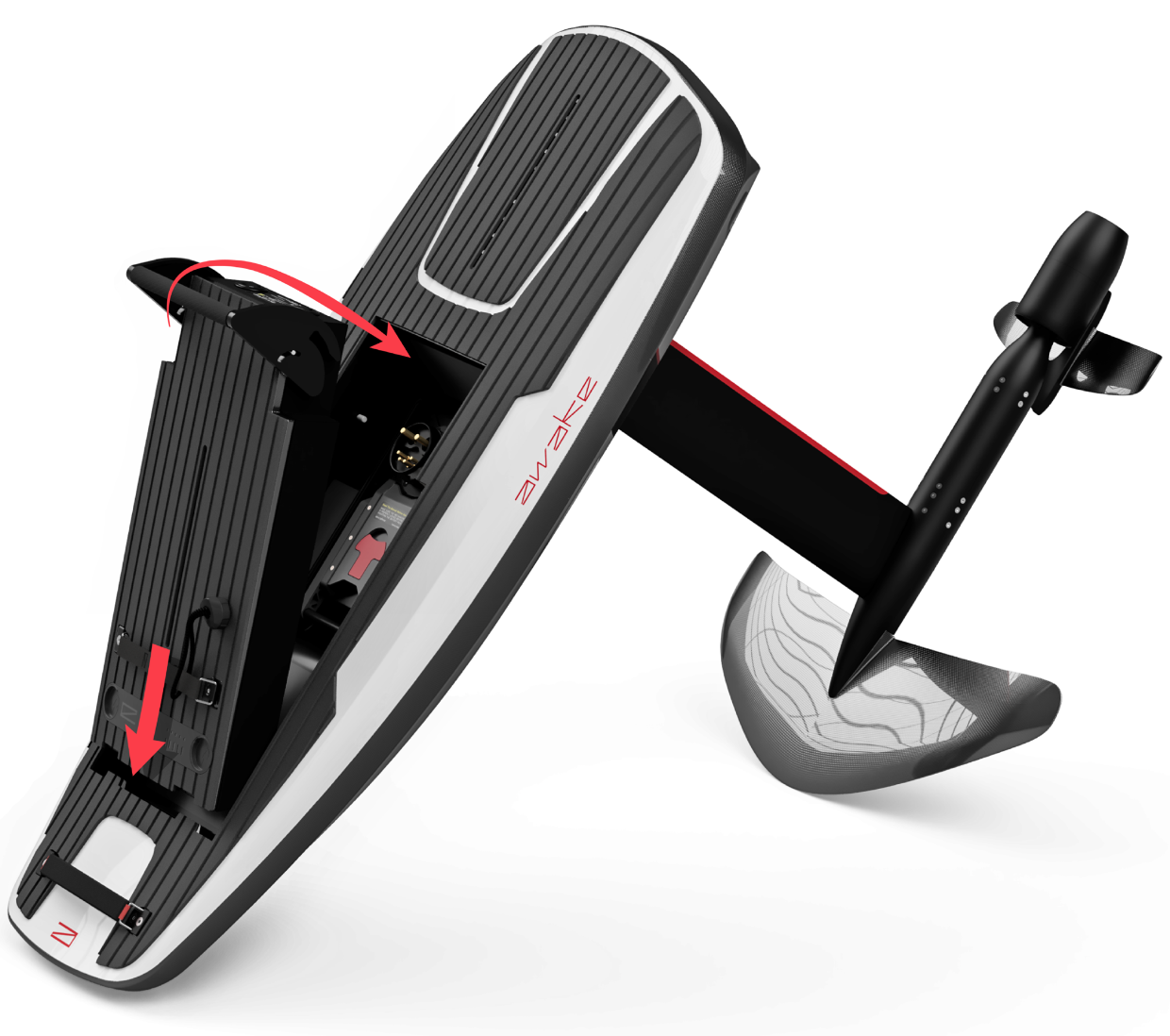

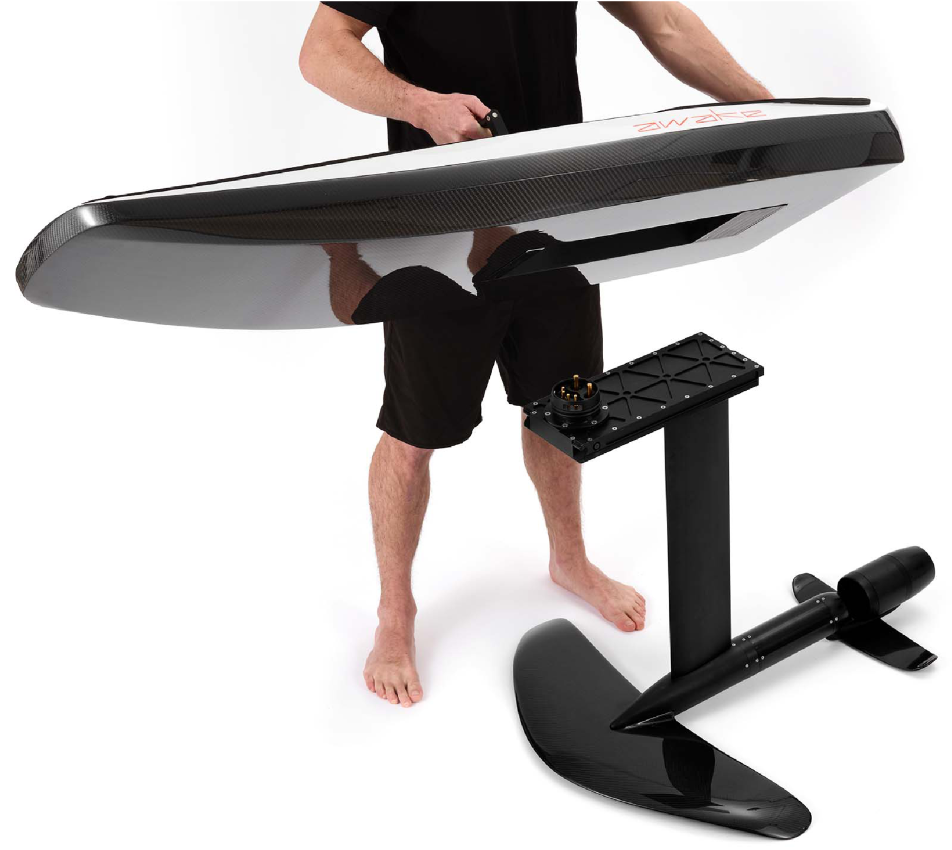

3. Slip the board on top of the drive unit and fasten the connection by pressing down the black locking handle.



4. The Click-to-Ride system is secure when the red safety latch is clicked into place.

Check out the video below for a demonstration of the Click-to-Ride system

Connect the battery

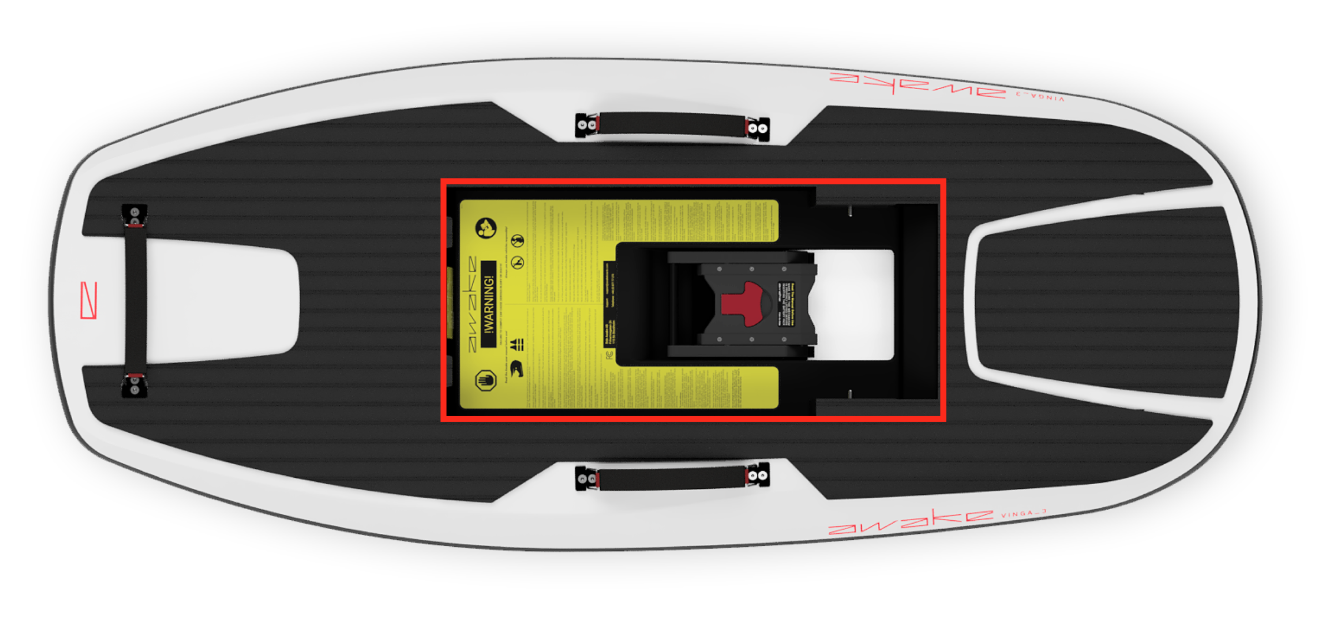

1. Make sure that the battery compartment in the board is clean and free from debris.

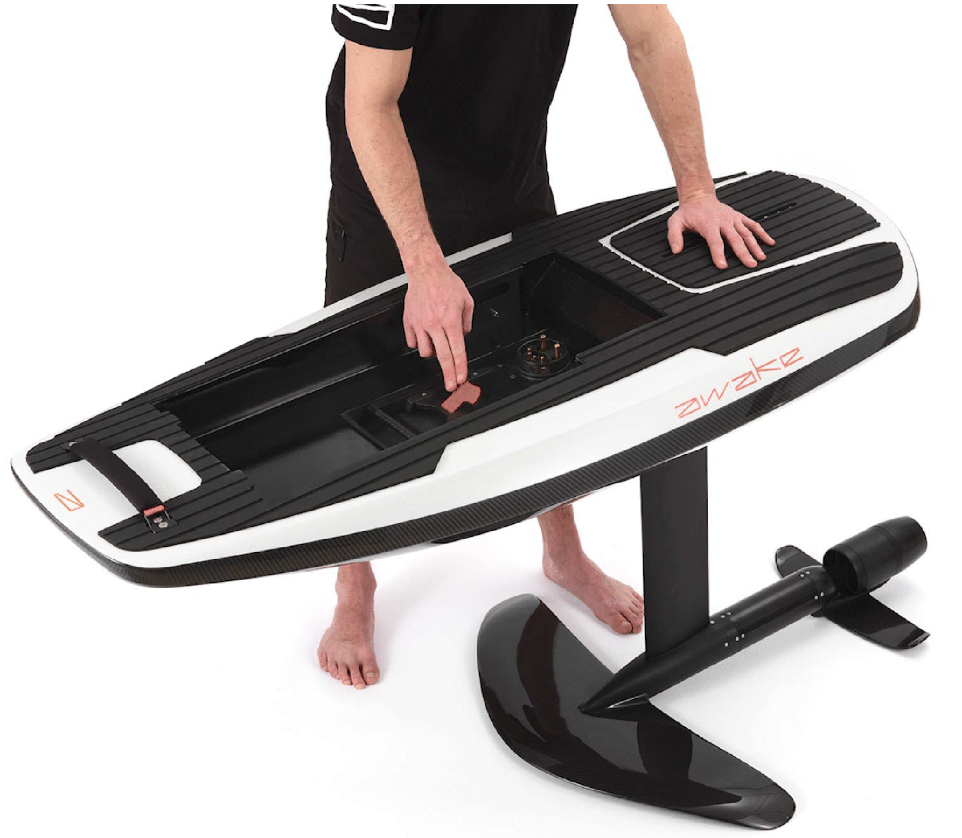

2. Carefully slide the front into the board and make sure that the pins in the board is aligned with the battery.



 3. Push down the locking handle to secure the battery to the board

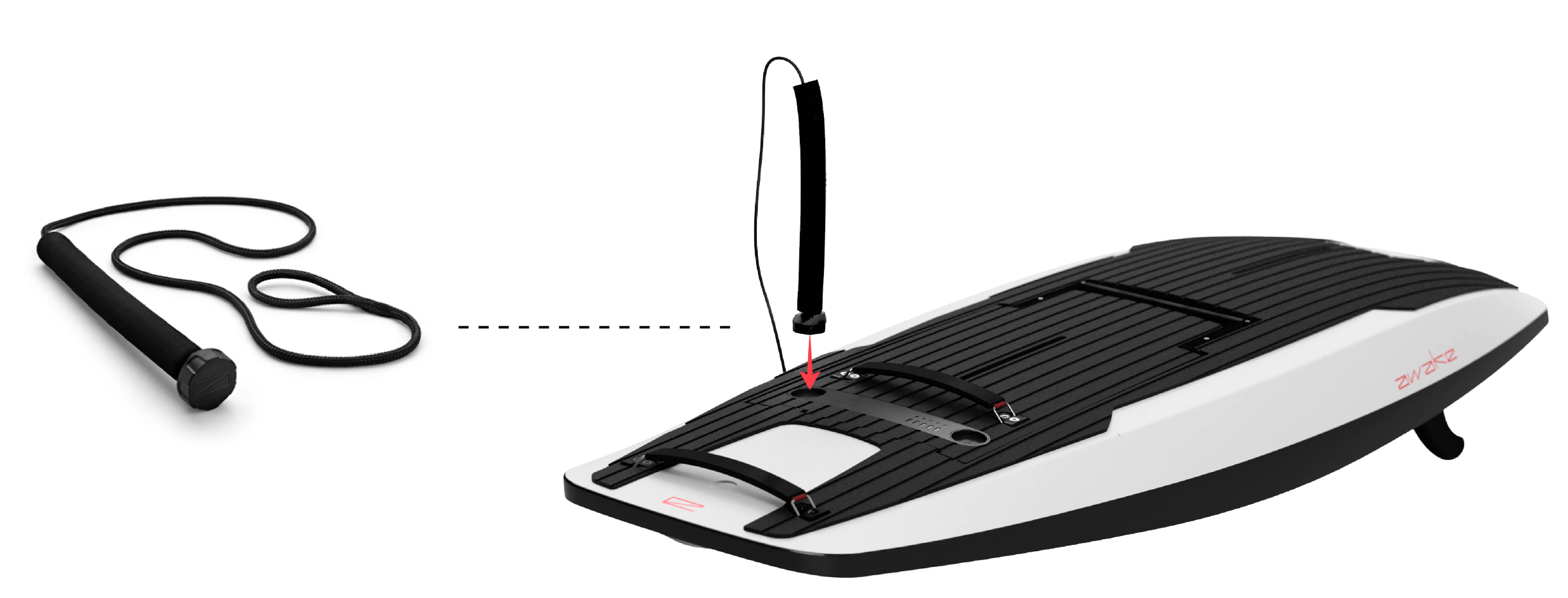

4. Activate the battery by placing a Power key into the receptacles on the battery.









State of charge

Battery

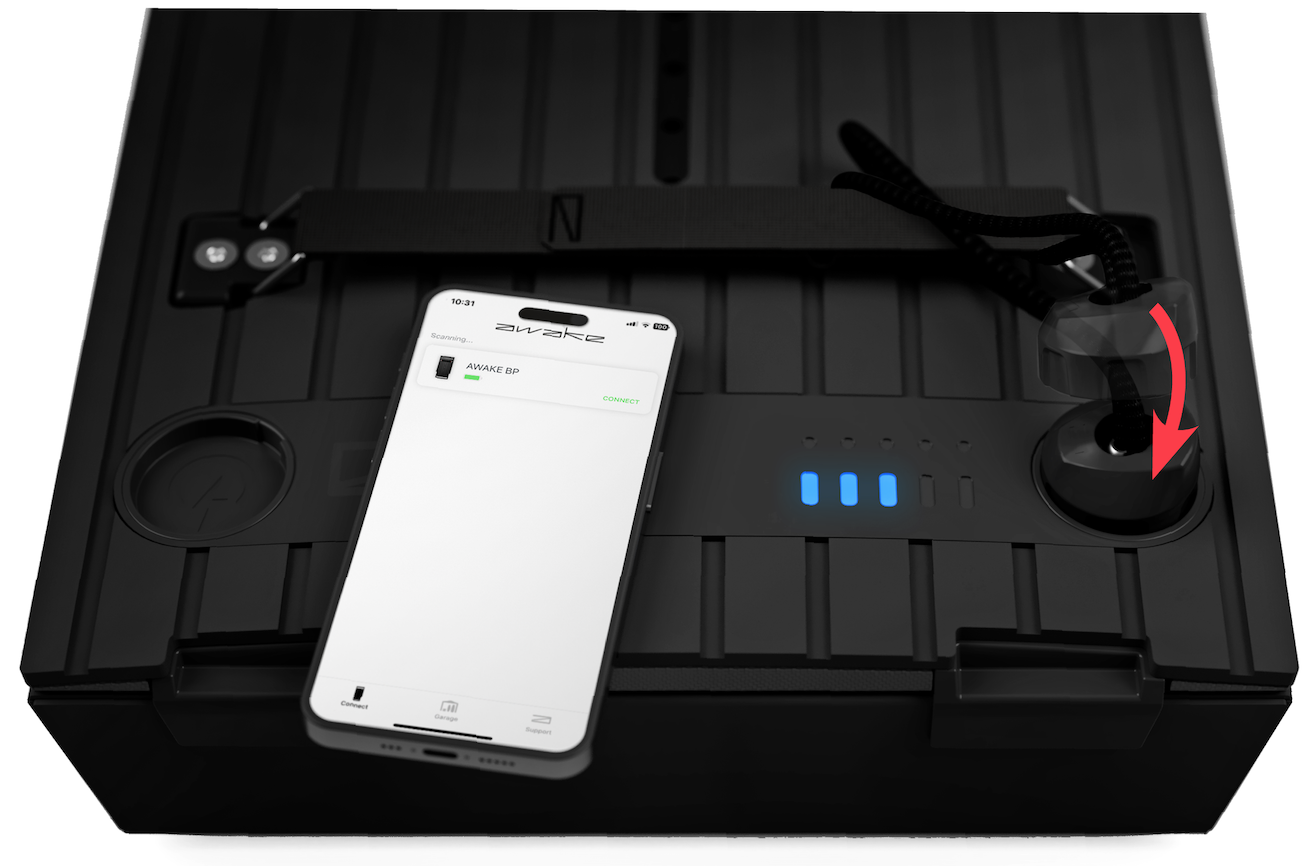

Activate the battery pack with the Power Key Leash to see the state of charge.

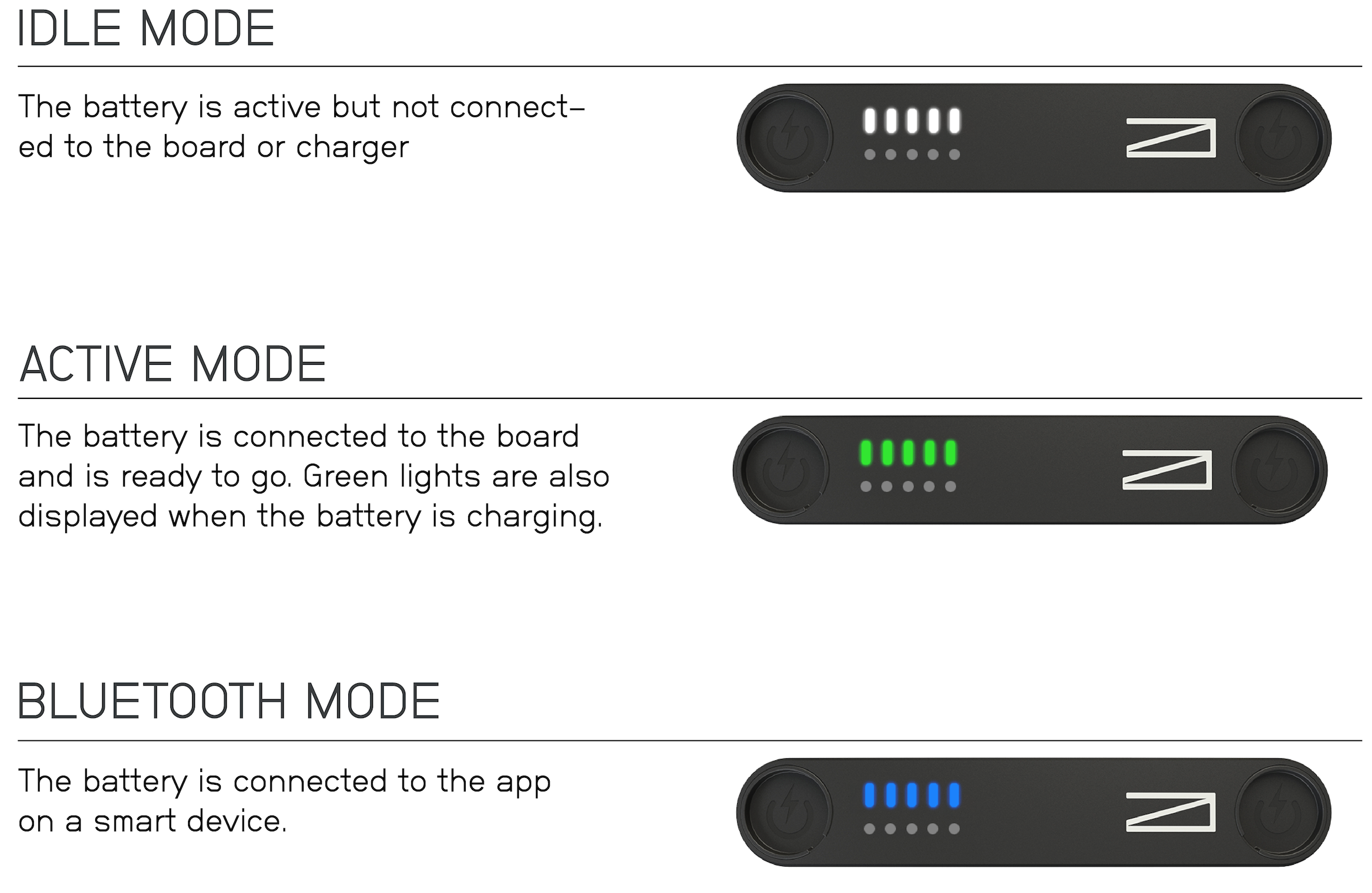

Green lights pulsing = charging

5x green lights = 100% charge

1x green light = 20%

Example: 3 green lights = 60%







Controller

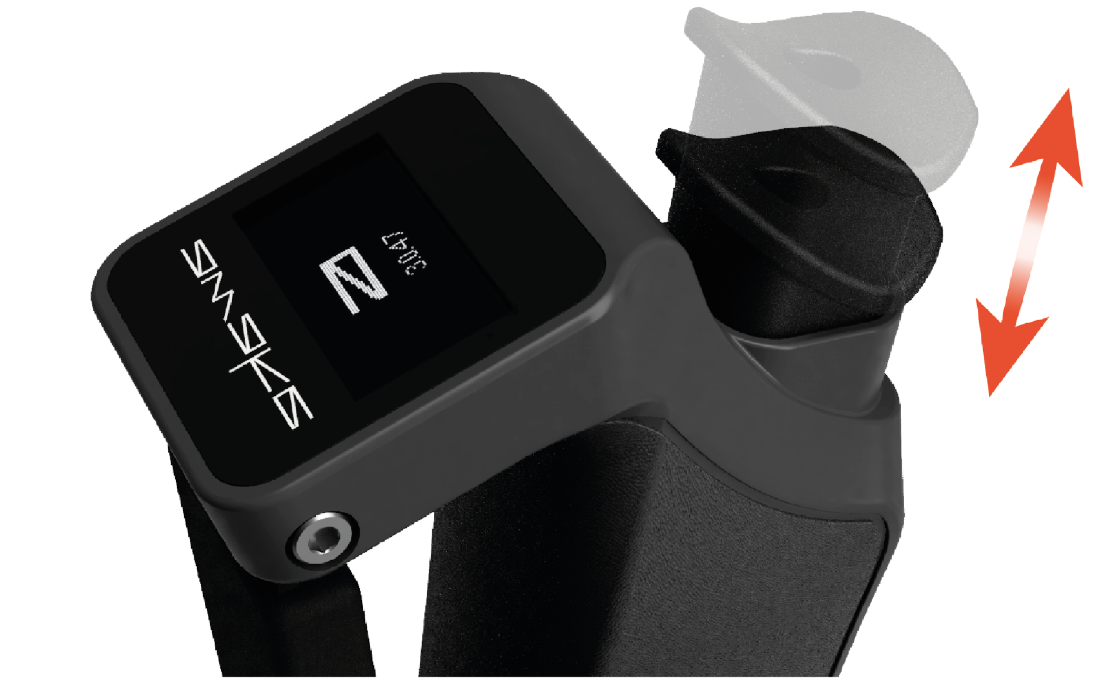

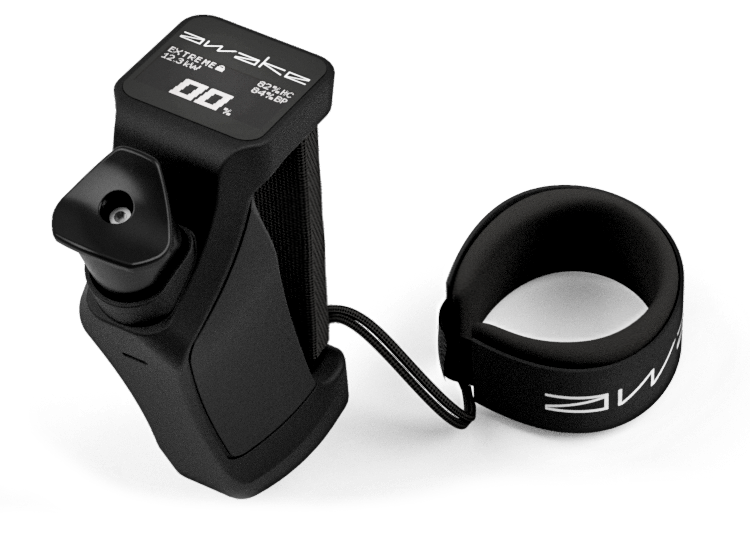

Activate the controller by pushing down the throttle button.

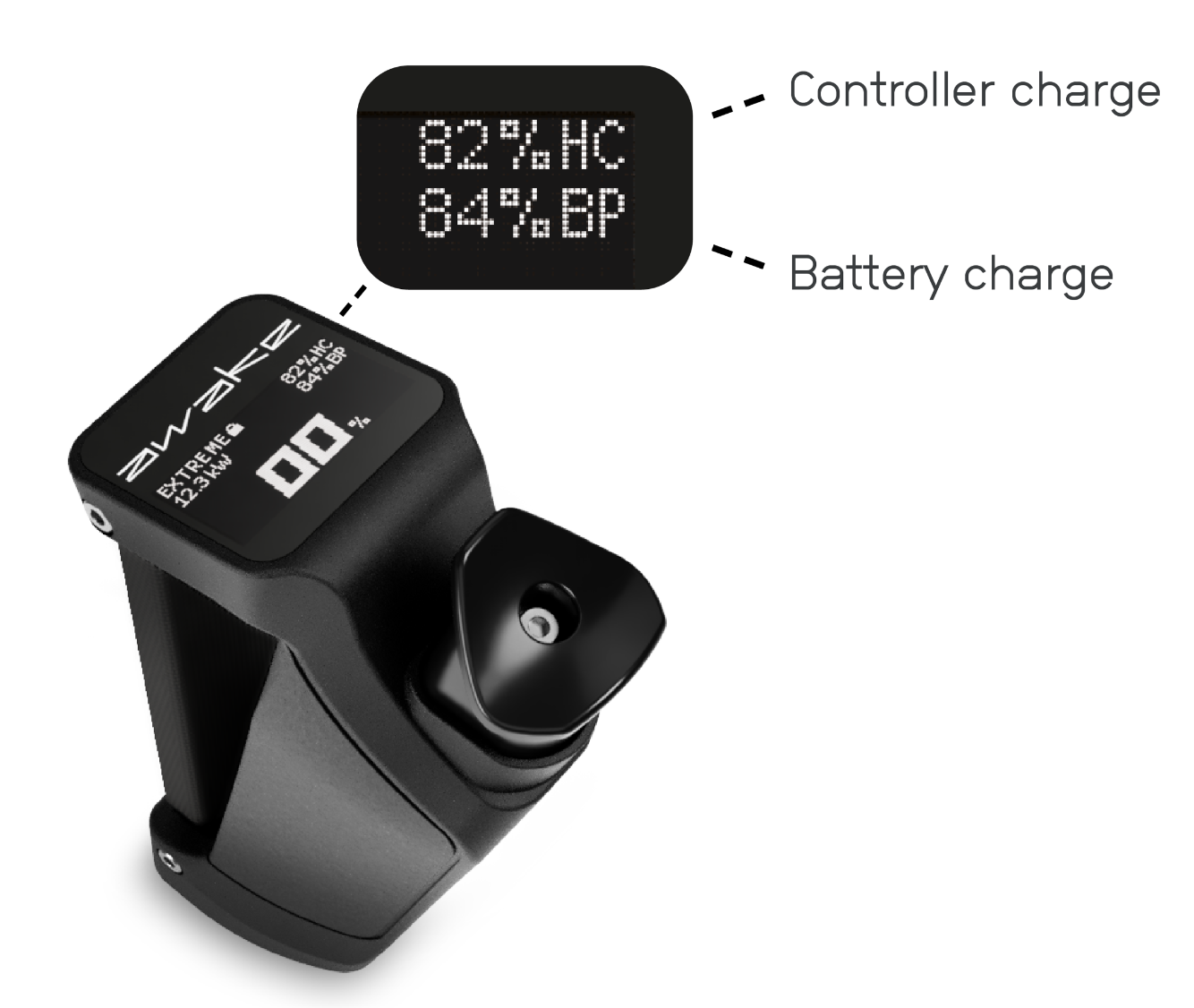

The state of charge for both controller and battery is displayed in the top right corner of the screen.







App

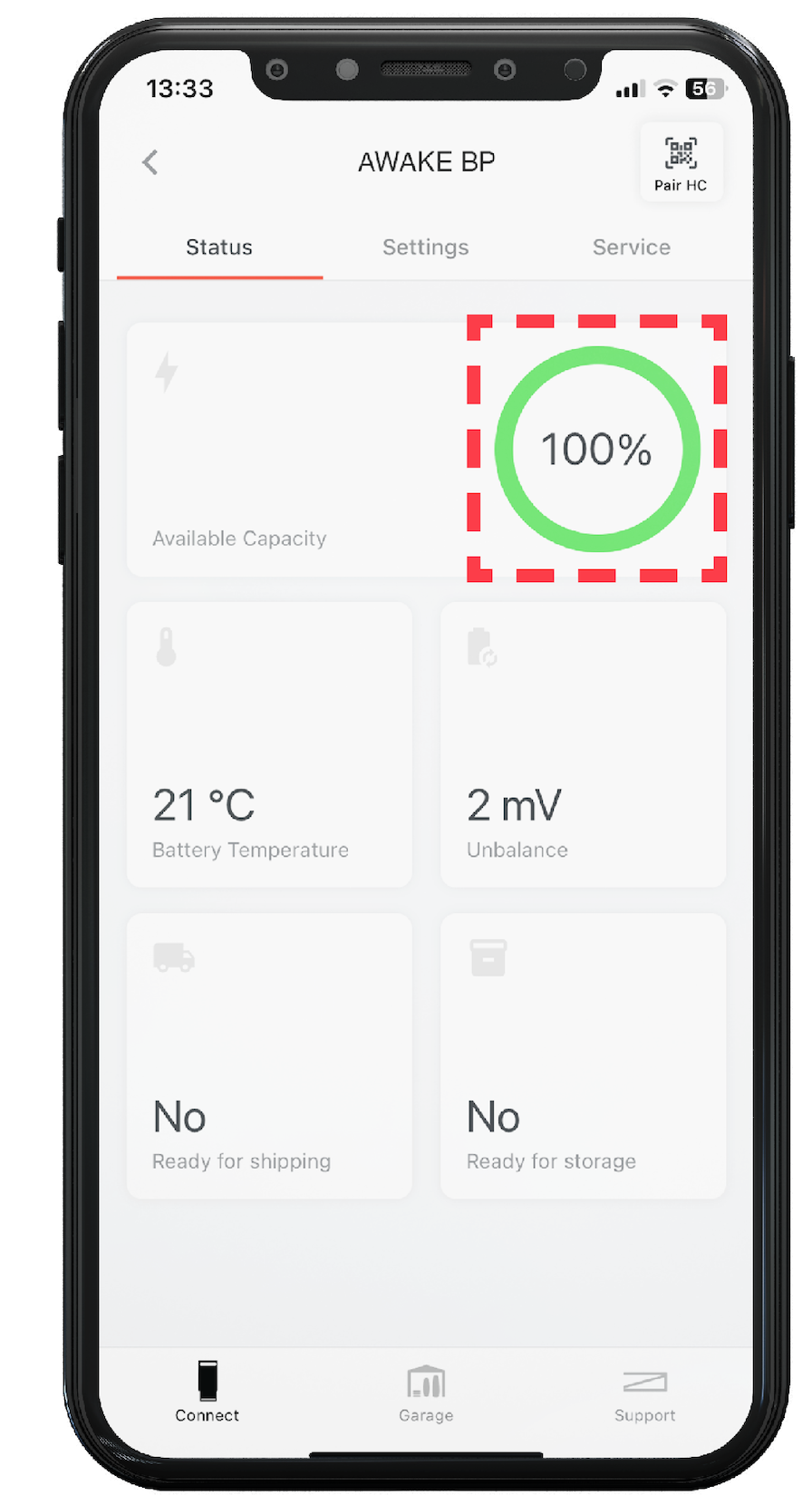

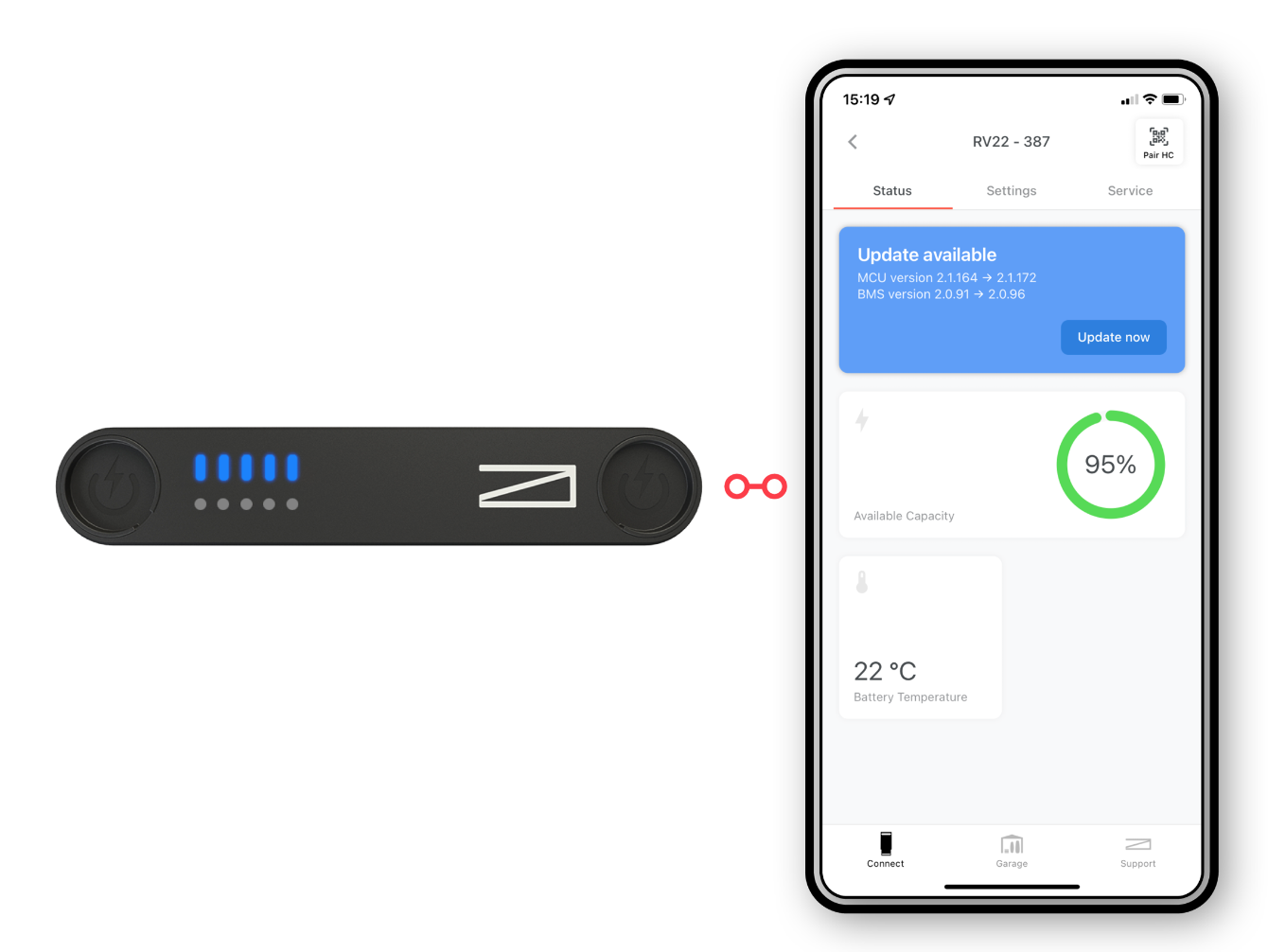

See the state of charge of the battery in the “Status”-tab of the Awake link App.







Download the Awake Link app

 1. Download the Awake Link app from App store or Play store iPhone Android



2. Activate Bluetooth and Location services on your smart device



3. Open the app on your smart device and connect it to one of your Awake batteries.







4. Explore the different functions in the app to see gear status, firmware data and contact support.







Pair the controller

1. Activate the battery with a Power Key and open the app on your smart device







2. Activate the controller by pressing the throttle button once.





3. Press the throttle one more time to see the QR-code

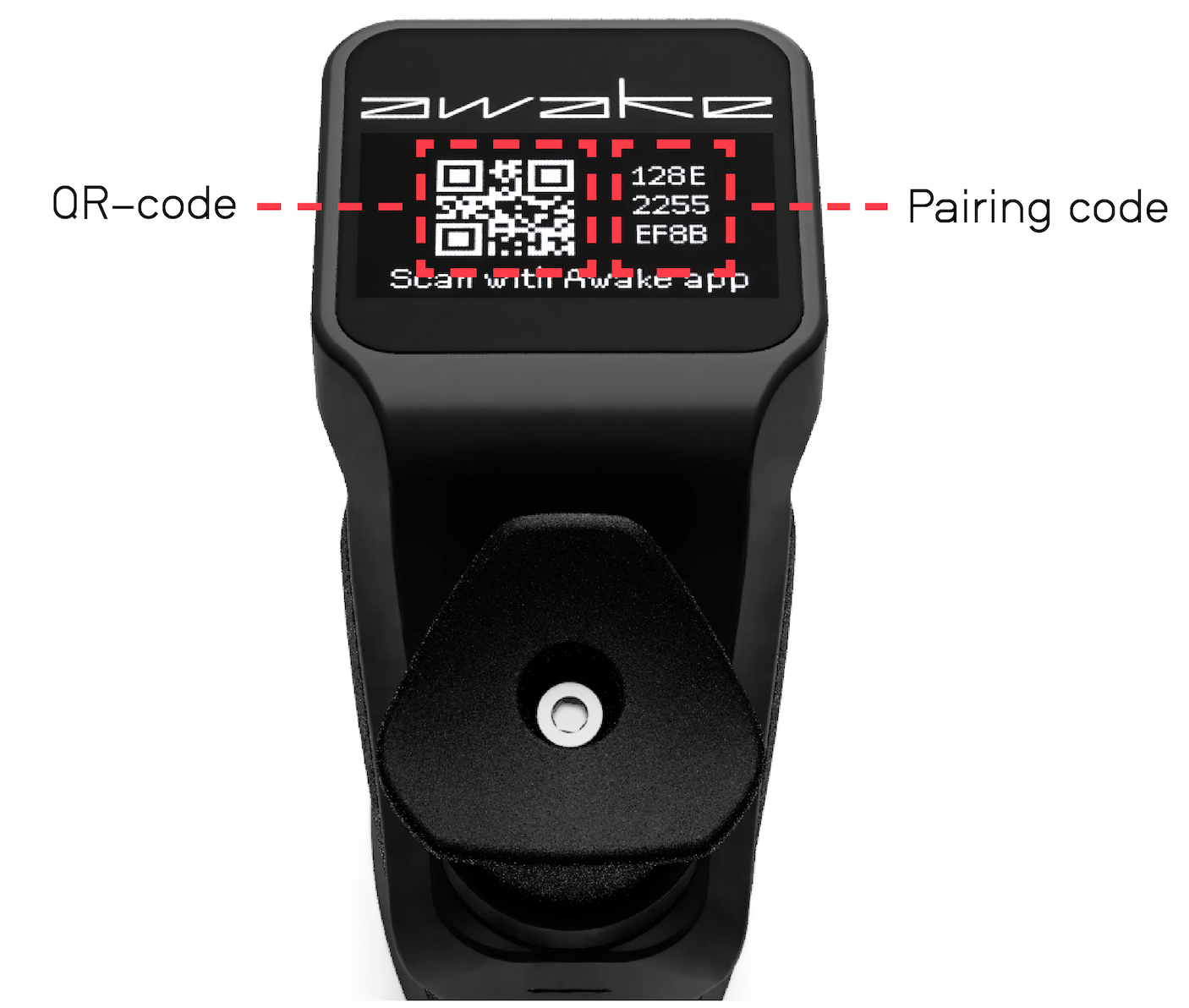

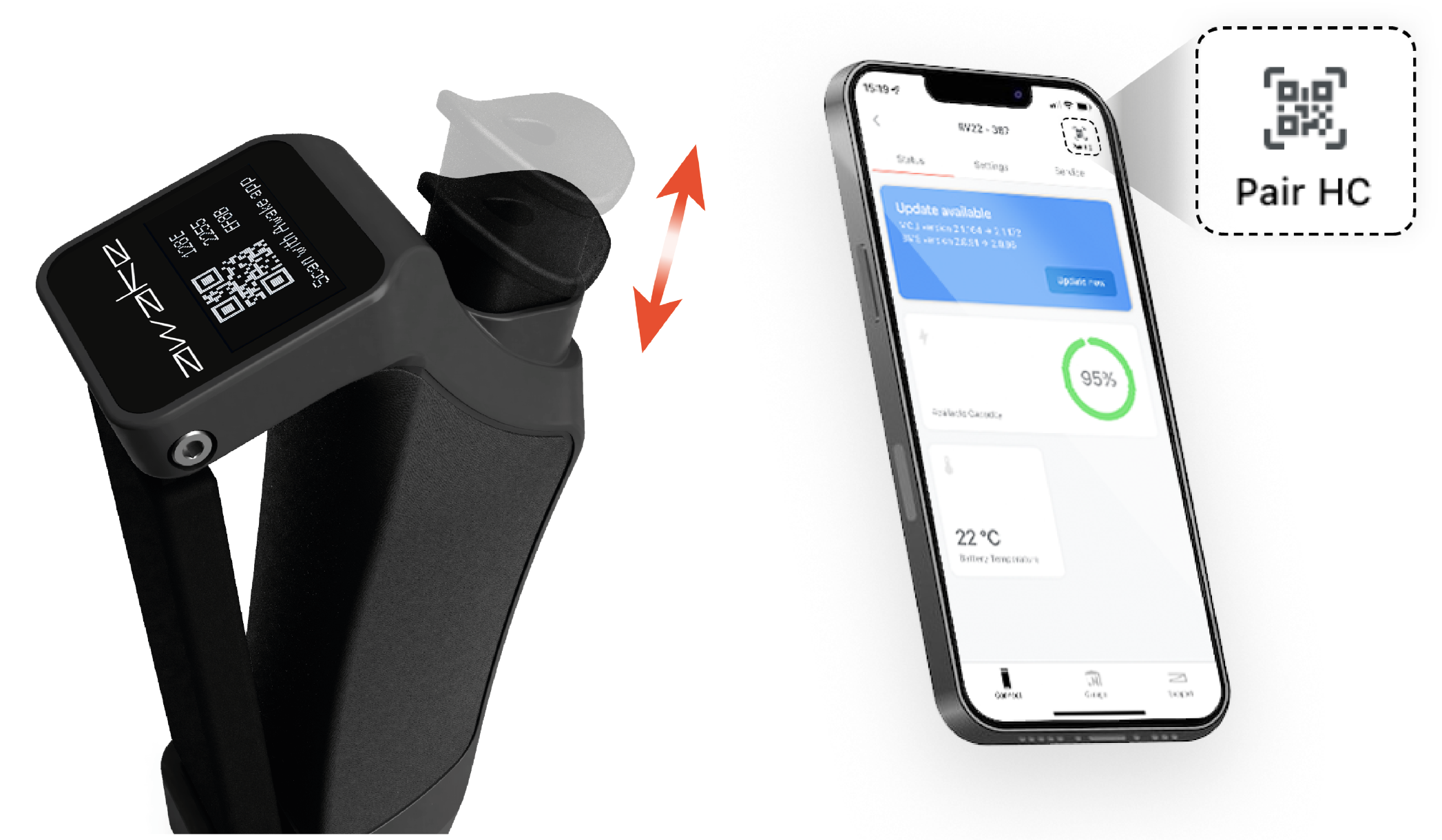

4. Use the Pair HC function in the top right corner to scan the QR-code or enter the Pairing code on the controller display





 Check the video tutorial below to master your first ride.
