Battery

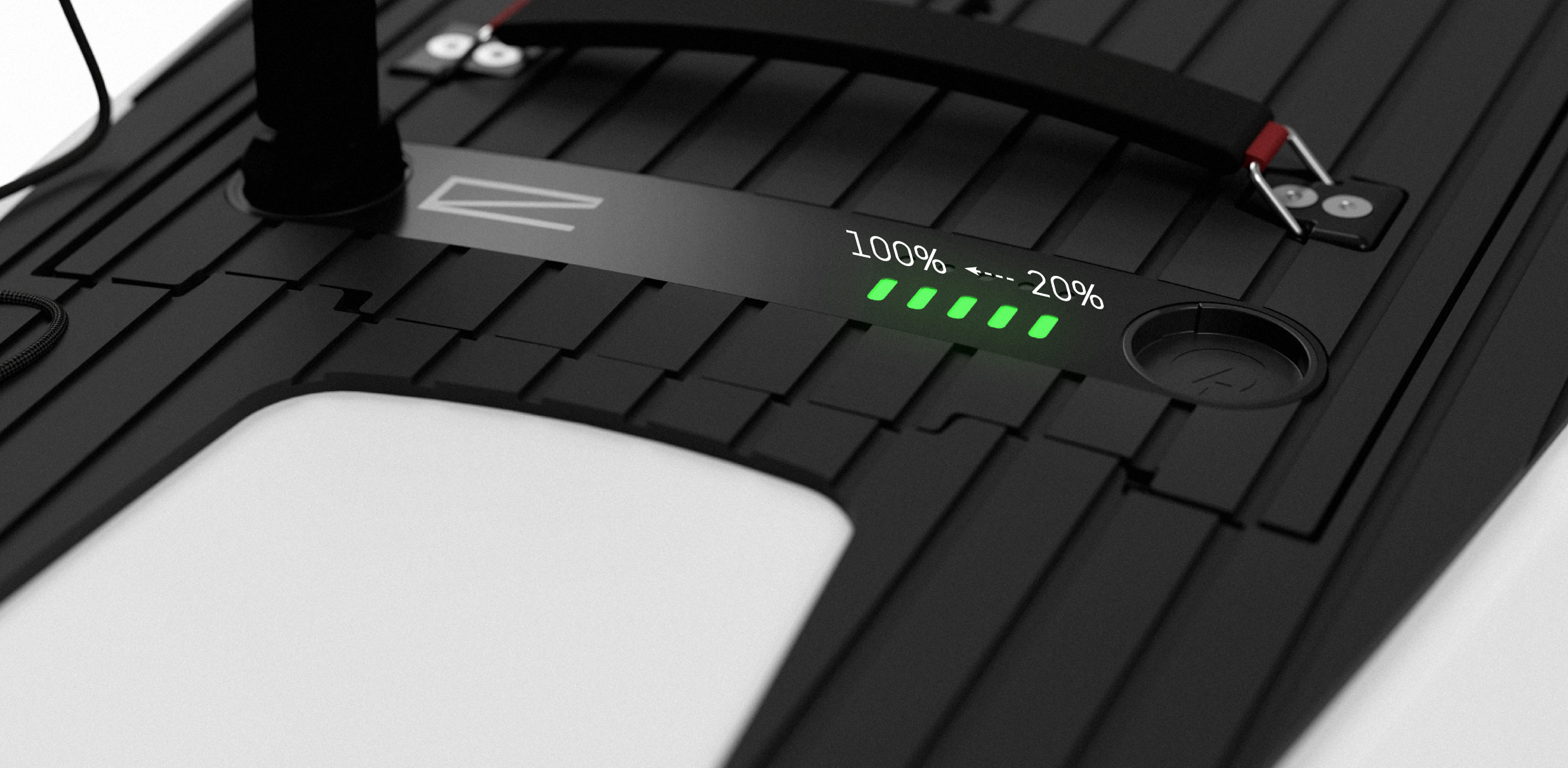

Activate the battery pack with the Power Key Leash to see the state of charge.

• Green lights pulsing = charging

• 5x green lights = 100% charge

• 1x green light = 20%

Example: 3 green lights = 60%

Controller

Activate the controller by pushing down the throttle button.

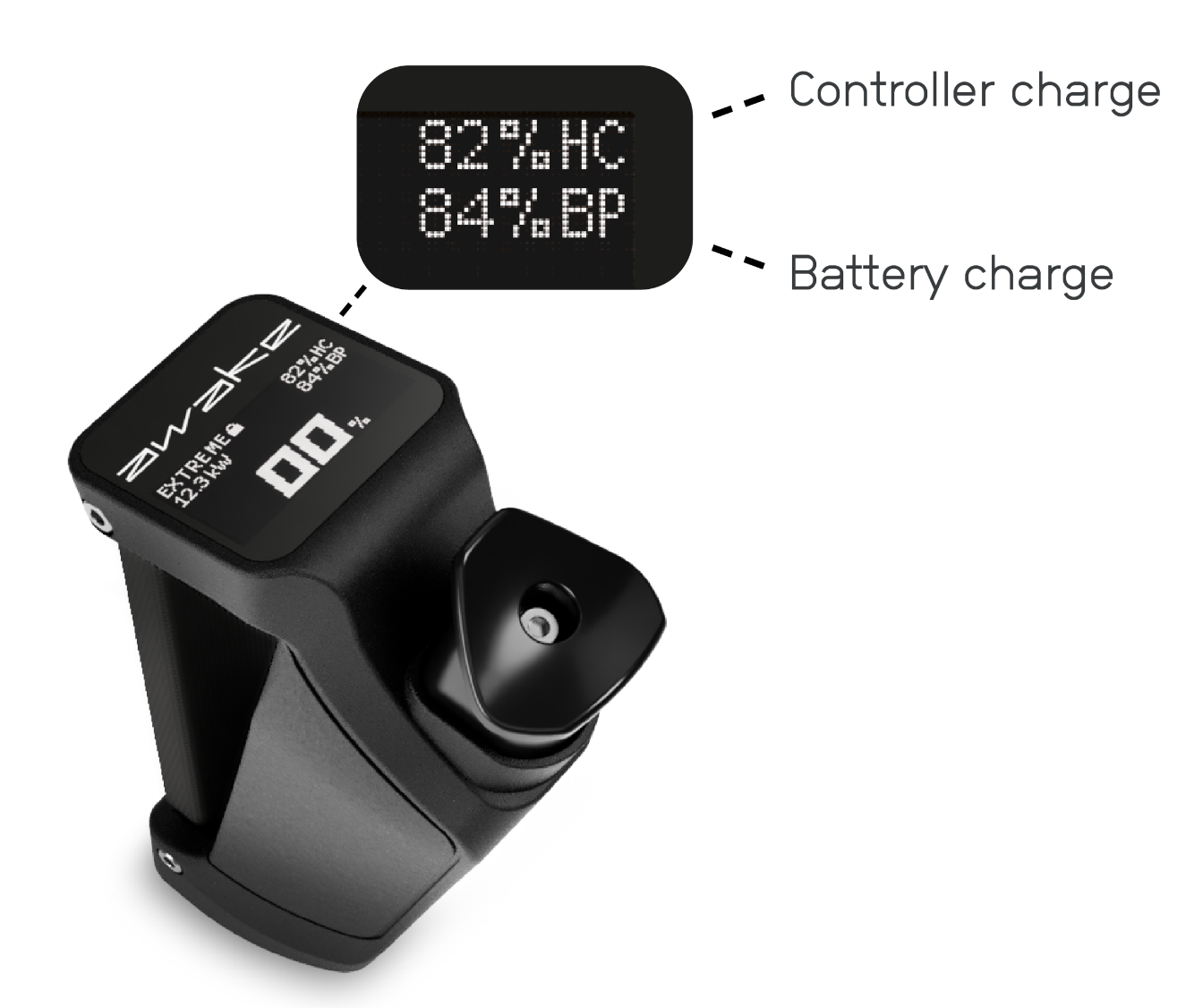

The state of charge for both controller and battery is displayed in the top right corner of the screen.

App

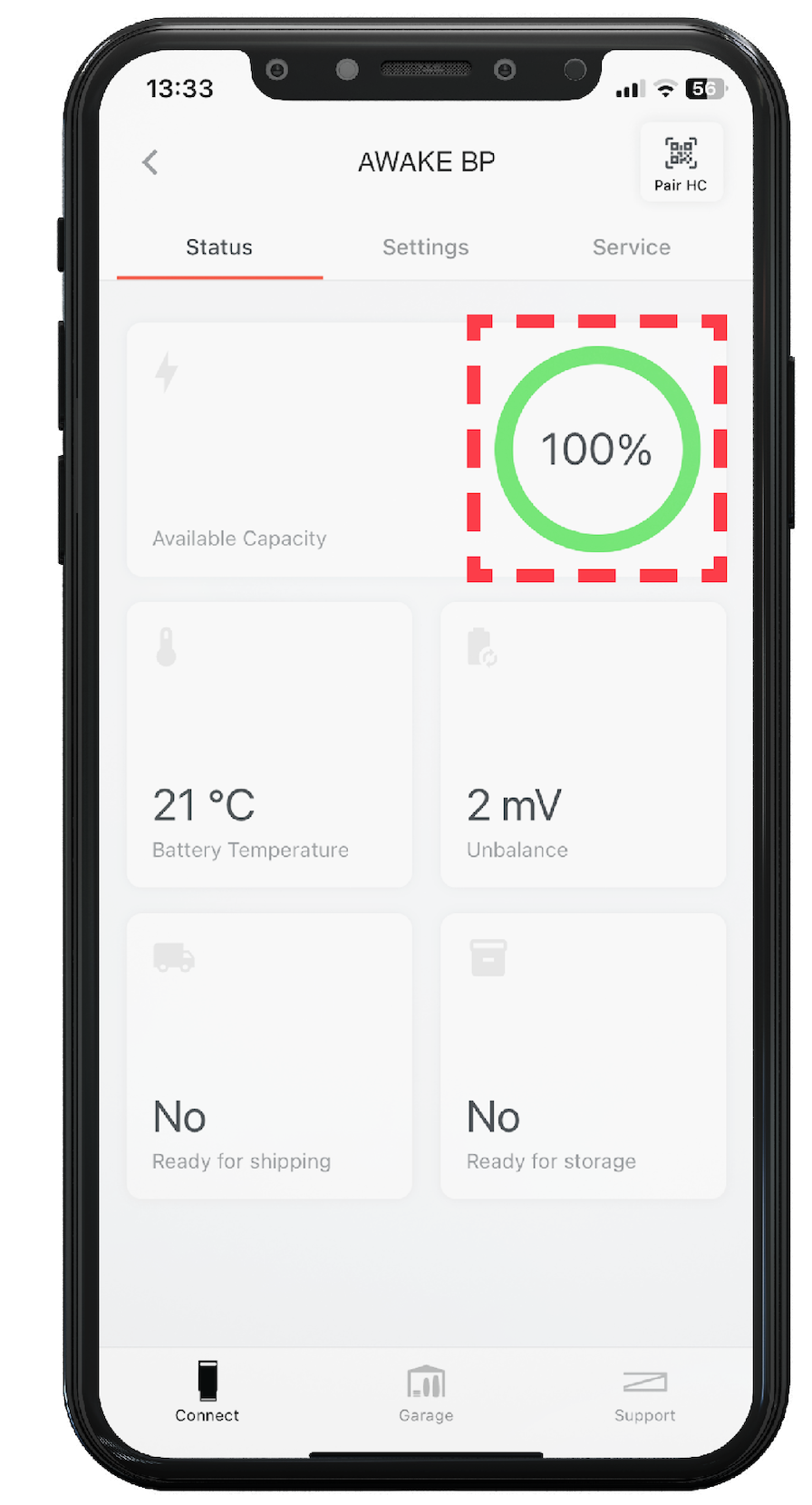

See the state of charge of the battery in the “Status”-tab of the Awake link App.

Check out more about the battery pack LEDs in the BP LED guide here!
