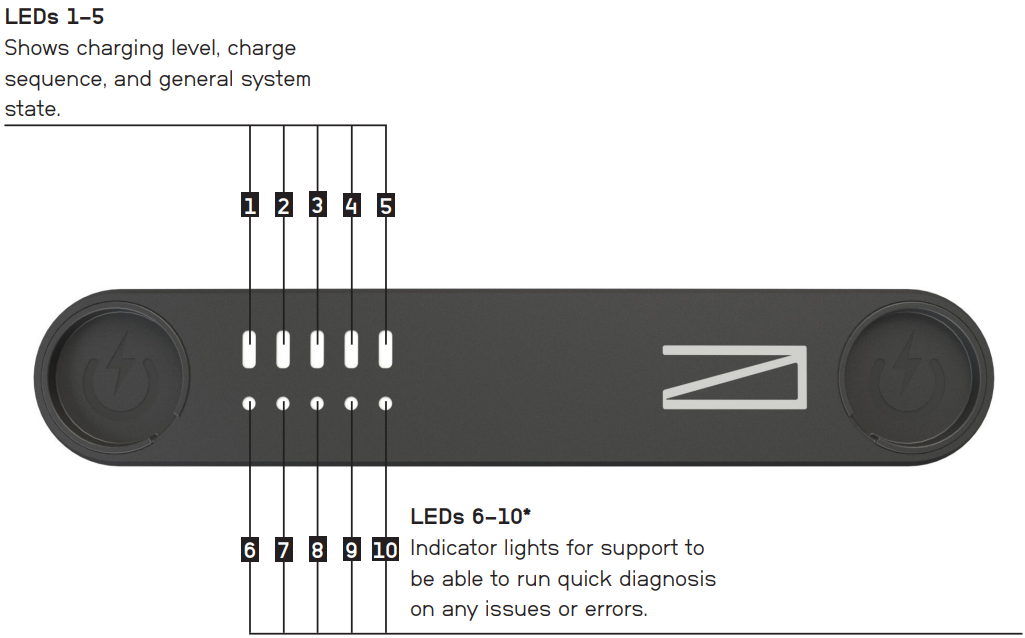

Battery LED guide

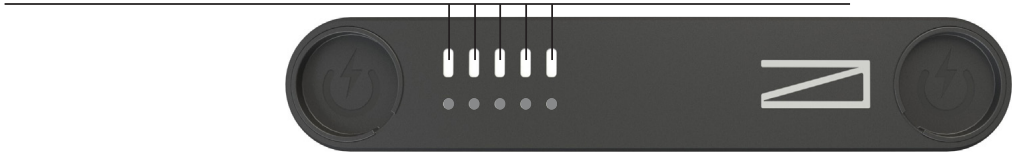

WHITE signals

Idle mode – When PKL is connected on Flex BP outside the board

GREEN signals

All systems are fully functioning

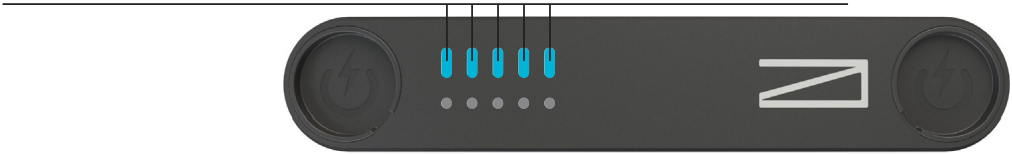

BLUE signals

The battery is connected to the Awake App

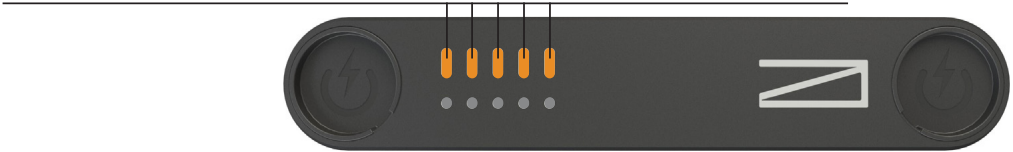

ORANGE signals

Anomaly detected – Check LED guides below for recommendations

RED signals

Error detected – Check LED guides below for recommendations

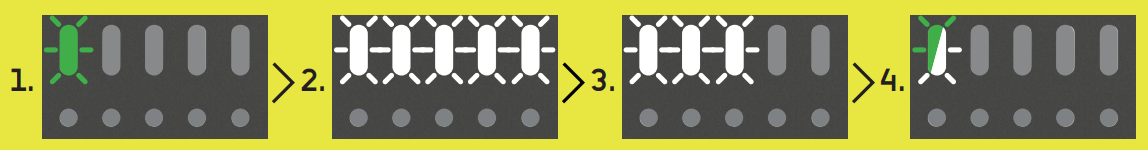

Slow-down sequence (empty Flex BP)

1: The Flex BP is close to empty, low battery alerts are activated (one LED blinking green)

2: Very Low charge level is reached (all LED lights blinking white)

3: The connection between the Flex BP and HC will cease briefly (White LEDs slide from 5-0)

4: SLOW mode activated (LED lights blinking green/white)

Explanation: Step one is a notification that the rider must head back to shore, steps two to four are further insurance that the rider complies with the system’s recommendation, as well as keeping the battery cells within safe voltage levels.
