General
Warning notifications will be displayed on the Flex HC screen if there is a suspected error with the gear.

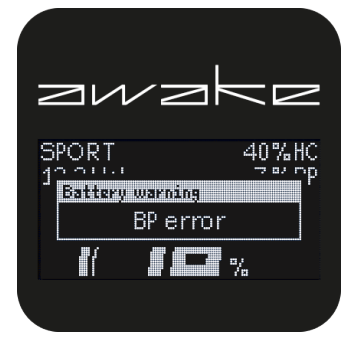

| 1. Battery warning - Flex BP Error | |
|
There is an issue with the Flex BP. Recommended actions: End the ride immediately. Refer to the LED lights on the Flex BP for more information about specific error codes. If the issue persists, contact support through the Awake Link app. |
|

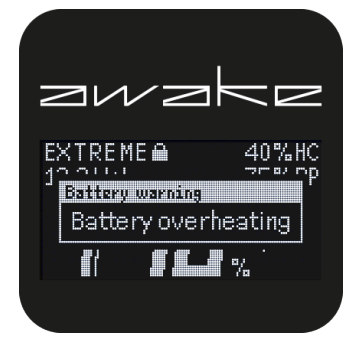

| 2. Battery warning - Battery Overheating | |
|
The Flex BP will switch to ECO mode to preserve the Flex BP. Recommended actions: Stop riding as soon as possible and wait for the Flex BP to cool down. |
|

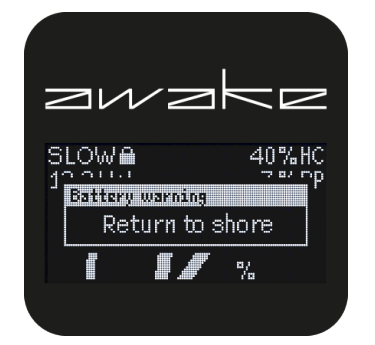

| 3. Battery warning - Return to shore | |
|
When the Flex BP state of charge is very low, the Flex BP will switch to SLOW mode to save battery charge and ensure that there is enough charge left to make it back to shore. Recommended actions: Return to shore immediately. |
|

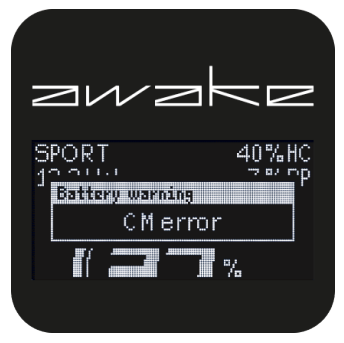

| 4. Battery warning - CM error | |
|
There is an issue with the Connector Module. Recommended actions: End the ride immediately. Refer to the LED lights on the Flex BP for more information about specific error code. If the issue persists, contact support through the Awake Link app. |
|

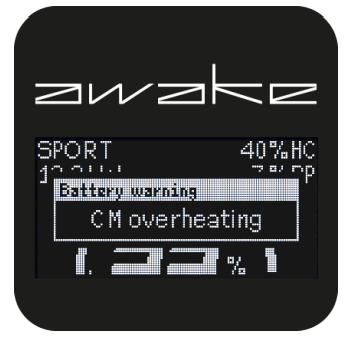

| 5. Battery warning - CM overheating | |
|
The battery will switch to ECO mode to preserve the connector module. Recommended actions: Stop riding as soon as possible and wait for the CM to cool down. If this error occurs often, service may be needed. |
|

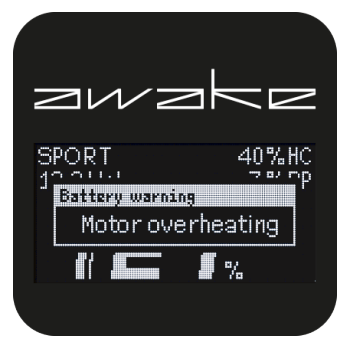

| 6. Battery warning - Motor overheating | |
|
The battery will switch to ECO mode to preserve the motor. Recommended actions: Stop riding as soon as possible and wait for the Motor to cool down. If this error occurs often, service may be needed. |
|
